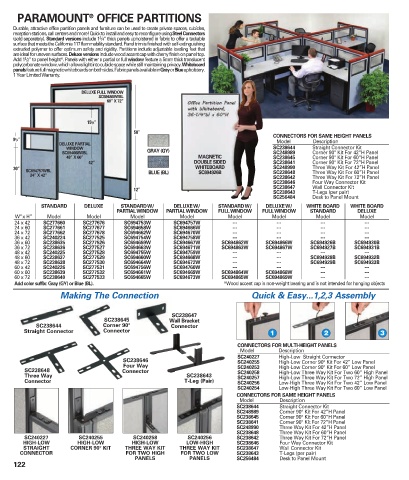

PARAMOUNT OFFICE PARTITIONS
®
Durable, attractive office partition panels and furniture can be used to create private spaces, cubicles,
reception stations, call centers and more! Quick to install and easy to reconfigure using Steel Connectors
(sold separately). Standard versions include 1 3 /4” thick panels upholstered in fabric to offer a tackable
surface that meets the California 117 flammability standard. Panel trim is finished with self-extinguishing
extruded polymer to offer optimum safety and rigidity. Partitions include adjustable leveling feet that
are ideal for uneven surfaces. Deluxe versions include wood accent cap with cherry finish on panel top.
Add 1 1 /2” to panel height*. Panels with either a partial or full window feature a 5mm thick translucent
polycarbonate window, which allows light into cubicle space while still maintaining privacy. Whiteboard
panels feature full magnetic whiteboards on both sides. Fabric panels available in Gray or Blue upholstery.
1 Year Limited Warranty.
DELUXE FULL WINDOW
SC694869WBL
60” X 72”

15 1 /4”
58”
9 1 /4” CONNECTORS FOR SAME HEIGHT PANELS
Model
Description
DELUXE PARTIAL
WINDOW SC238644 Straight Connector Kit
SC694668WBL GRAY (GY) SC248989 Corner 90° Kit For 42”H Panel
48” X 60” MAGNETIC SC238645 Corner 90° Kit For 60”H Panel
42” DOUBLE SIDED SC238641 Corner 90° Kit For 72”H Panel
30” SC694757WBL WHITEBOARD SC248990 Three Way Kit For 42”H Panel
24” X 42” BLUE (BL) SC694926B SC238648 Three Way Kit For 60”H Panel
SC238642
Three Way Kit For 72”H Panel
SC238646 Four Way Connector Kit
12” SC238647 Wall Connector Kit
SC238643 T-Legs (per pair)
SC256484 Desk to Panel Mount
STANDARD DELUXE STANDARD W/ DELUXE W/ STANDARD W/ DELUXE W/ WHITE BOARD WHITE BOARD
PARTIAL WINDOW PARTIAL WINDOW FULL WINDOW FULL WINDOW STANDARD DELUXE
W”x H” Model Model Model Model Model Model Model Model
24 x 42 SC277660 SC277676 SC694753W SC694757W --- --- --- ---
24 x 60 SC277661 SC277677 SC694658W SC694666W --- --- --- ---
24 x 72 SC277662 SC277678 SC694662W SC694670W --- --- --- ---
36 x 42 SC240224 SC277525 SC694754W SC694758W --- --- --- ---
36 x 60 SC238635 SC277526 SC694659W SC694667W SC694862W SC694866W SC694926B SC694930B
36 x 72 SC238636 SC277527 SC694663W SC694671W SC694863W SC694867W SC694927B SC694931B
48 x 42 SC240225 SC277528 SC694755W SC694759W --- --- --- ---
48 x 60 SC238637 SC277529 SC694660W SC694668W --- --- SC694928B SC694932B
48 x 72 SC238638 SC277530 SC694664W SC694672W --- --- SC694929B SC694933B
60 x 42 SC240226 SC277531 SC694756W SC694760W --- --- --- ---
60 x 60 SC238639 SC277532 SC694661W SC694669W SC694864W SC694868W --- ---
60 x 72 SC238640 SC277533 SC694665W SC694673W SC694865W SC694869W --- ---
Add color suffix: Gray (GY) or Blue (BL). *Wood accent cap is non-weight bearing and is not intended for hanging objects
Making The Connection Quick & Easy...1,2,3 Assembly
SC238647
SC238645 Wall Bracket
SC238644 Corner 90° Connector
Straight Connector Connector 1 2 3 1 4 2 3 4 1 2 3
CONNECTORS FOR MULTI-HEIGHT PANELS
Model Description
SC240227 High-Low Straight Connector
SC238646 SC240255 High-Low Corner 90° Kit For 42” Low Panel
Four Way SC240253 High-Low Corner 90° Kit For 60” Low Panel
SC238648 Connector SC240258 High-Low Three Way Kit For Two 60” High Panel
Three Way SC238643 SC240257 High-Low Three Way Kit For Two 72” High Panel
Connector T-Leg (Pair) SC240256 Low-High Three Way Kit For Two 42” Low Panel
SC240254 Low-High Three Way Kit For Two 60” Low Panel
CONNECTORS FOR SAME HEIGHT PANELS
Model Description
SC238644 Straight Connector Kit
SC248989 Corner 90° Kit For 42”H Panel
SC238645 Corner 90° Kit For 60”H Panel
SC238641 Corner 90° Kit For 72”H Panel
SC248990 Three Way Kit For 42”H Panel
SC238648 Three Way Kit For 60”H Panel
SC240227 SC240255 SC240258 SC240256 SC238642 Three Way Kit For 72”H Panel
HIGH-LOW HIGH-LOW HIGH-LOW LOW-HIGH SC238646 Four Way Connector Kit
STRAIGHT CORNER 90° KIT THREE WAY KIT THREE WAY KIT SC238647 Wall Connector Kit
CONNECTOR FOR TWO HIGH FOR TWO LOW SC238643 T-Legs (per pair)
PANELS PANELS SC256484 Desk to Panel Mount
