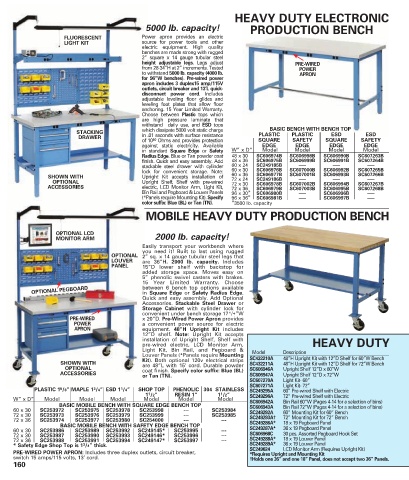

Page 160 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

HEAVY DUTY ELECTRONIC
5000 lb. capacity! PRODUCTION BENCH
FLUORESCENT Power apron provides an electric
LIGHT KIT source for power tools and other
electric equipment. High quality
benches are made strong with rugged
2” square x 14 gauge tubular steel
height adjustable legs. Legs adjust PRE-WIRED
from 28-34”H at 2” increments. Tested POWER
to withstand 5000 lb. capacity (4000 lb. APRON
for 96”W benches). Pre-wired power
apron includes 3 duplex15 amp/115V
outlets, circuit breaker and 13’L quick-
disconnect power cord. Includes
adjustable leveling floor glides and
leveling foot plates that allow floor
anchoring. 15 Year Limited Warranty.
Choose between Plastic tops which
are high pressure laminate that
withstand daily use, and ESD tops
BASIC BENCH WITH BENCH TOP
STACKING which dissipate 5000 volt static charge PLASTIC PLASTIC ESD ESD

DRAWER in .01 seconds with surface resistance
of 10 10 Ohms and provides protection SQUARE SAFETY SQUARE SAFETY
against static electricity. Available EDGE EDGE EDGE EDGE
in standard Square Edge or Safety W” x D” Model Model Model Model
Radius Edge. Blue or Tan powder coat 48 x 30 SC606974B SC606998B SC606990B SC607263B
finish. Quick and easy assembly. Add 48 x 36 SC606975B SC606999B SC606991B SC607264B
stackable steel drawer with cylinder 60 x 24 SC249185B ––– ––– –––
lock for convenient storage. Note: 60 x 30 SC606976B SC607000B SC606992B SC607265B
SHOWN WITH Upright Kit accepts installation of 60 x 36 SC606977B SC607001B SC606993B SC607266B
–––
SC249186B
–––
–––
72 x 24
OPTIONAL Upright Shelf, Shelf with pre-wired 72 x 30 SC606978B SC607002B SC606994B SC607267B
ACCESSORIES electric, LCD Monitor Arm, Light Kit, 72 x 36 SC606979B SC607003B SC606995B SC607268B
Bin Rail and Pegboard & Louver Panels 96 x 30 * SC606980B ––– SC606996B –––
(*Panels require Mounting Kit). Specify 96 x 36 * SC606981B ––– SC606997B –––
color suffix: Blue (BL) or Tan (TN). * 3500 lb. capacity
MOBILE HEAVY DUTY PRODUCTION BENCH
OPTIONAL LCD
MONITOR ARM 2000 lb. capacity!
Easily transport your workbench where
you need it! Built to last using rugged
OPTIONAL 2” sq. x 14 gauge tubular steel legs that
LOUVER are 36”H. 2000 lb. capacity. Includes
PANEL 15”D lower shelf with backstop for
added storage space. Moves easy on
5” phenolic swivel casters with brakes.
15 Year Limited Warranty. Choose
OPTIONAL PEGBOARD between 6 bench top options available
in Square Edge or Safety Radius Edge.
Quick and easy assembly. Add Optional
Accessories. Stackable Steel Drawer or
Storage Cabinet with cylinder lock for
convenient under bench storage 17 / 4 ”W
1
PRE-WIRED x 20”D. Pre-Wired Power Apron provides
POWER a convenient power source for electric
APRON equipment. 48”H Upright Kit includes
12”D shelf. Note: Upright Kit accepts
installation of Upright Shelf, Shelf with HEAVY DUTY
pre-wired electric, LCD Monitor Arm,
Light Kit, Bin Rail, and Pegboard & Model Description
Louver Panels (*Panels require Mounting SC432210A 48”H Upright Kit with 12”D Shelf for 60”W Bench
SHOWN WITH Kit). Both optional 120v electrical strips SC432211A 48”H Upright Kit with 12”D Shelf for 72”W Bench
OPTIONAL are 48”L with 15’ cord. Durable powder SC606946A Upright Shelf 12”D x 60”W
ACCESSORIES coat finish. Specify color suffix: Blue (BL) SC606947A Upright Shelf 12”D x 72”W
or Tan (TN).
SC607270A Light Kit- 60”
SC607271A Light Kit- 72”
PLASTIC 1 5 /8” MAPLE 1 3 /4” ESD 1 1 /4” SHOP TOP PHENOLIC 304 STAINLESS SC249295A 60” Pre-wired Shelf with Electric
1 1 /2” RESIN 1” 1 1 /2” SC249296A 72” Pre-wired Shelf with Electric
W” x D” Model Model Model Model Model Model SC606942A Bin Rail 60”W (Pages 4-14 for a selection of bins)
BASIC MOBILE BENCH WITH SQUARE EDGE BENCH TOP SC606943A Bin Rail 72”W (Pages 4-14 for a selection of bins)
60 x 30 SC253972 SC253975 SC253978 SC253998 --- SC253984 SC249292A 60” Mounting Kit for 60” Bench
72 x 30 SC253973 SC253976 SC253979 SC253999 --- SC253985 SC249293A† 72” Mounting Kit for 72” Bench
72 x 36 SC253974 SC253977 SC253980 SC254000 --- --- SC249286A* 18 x 19 Pegboard Panel
BASIC MOBILE BENCH WITH SAFETY EDGE BENCH TOP
60 x 30 SC253986 SC253989 SC253992 SC249145* SC253995 --- SC249287A* 36 x 19 Pegboard Panel
72 x 30 SC253987 SC253990 SC253993 SC249146* SC253996 --- SC606968C 30 pcs. Assorted Pegboard Hook Set
72 x 36 SC253988 SC253991 SC253994 SC249147* SC253997 --- SC249288A* 18 x 19 Louver Panel
* Safety Edge Shop Top is 1 3 /4” thick. SC249289A* 36 x 19 Louver Panel
PRE-WIRED POWER APRON: Includes three duplex outlets, circuit breaker, SC249624 LCD Monitor Arm (Requires Upright Kit)
*Requires Upright and Mounting Kit
switch 15 amps/115 volts, 13’ cord. †Holds one 36” and one 18” Panel, does not accept two 36” Panels.
