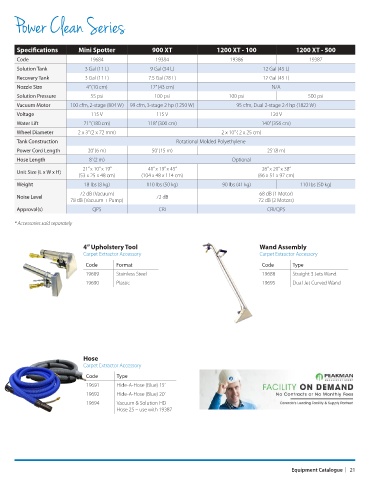

Page 21 - 2021- 8-27 PMGC DB Clean Equipment-Catalogue-2021_Neat

Power Clean Series

Specifications Mini Spotter 900 XT 1200 XT - 100 1200 XT - 500

Code 19684 19384 19386 19387
Solution Tank 3 Gal (11 L) 9 Gal (34 L) 12 Gal (45 L)
Recovery Tank 3 Gal (11 L) 7.5 Gal (28 L) 12 Gal (45 L)
Nozzle Size 4” (10 cm) 17” (43 cm) N/A
Solution Pressure 55 psi 100 psi 100 psi 500 psi
Vacuum Motor 100 cfm, 2-stage (804 W) 99 cfm, 3-stage 2 hp (1250 W) 95 cfm, Dual 2-stage 2.4 hp (1822 W)
Voltage 115 V 115 V 120 V
Water Lift 71” (180 cm) 118” (300 cm) 140” (356 cm)
Wheel Diameter 2 x 3” (2 x 72 mm) 2 x 10” ( 2 x 25 cm)
Tank Construction Rotational Molded Polyethylene
Power Cord Length 20’ (6 m) 50’ (15 m) 25’ (8 m)
Hose Length 8’ (2 m) Optional
21” x 10” x 19” 41” x 19” x 45” 26” x 20” x 38”
Unit Size (L x W x H)
(53 x 25 x 48 cm) (104 x 48 x 114 cm) (66 x 51 x 97 cm)
Weight 18 lbs (8 kg) 110 lbs (50 kg) 90 lbs (41 kg) 110 lbs (50 kg)
72 dB (Vacuum) 68 dB (1 Motor)
Noise Level 72 dB
78 dB (Vacuum + Pump) 72 dB (2 Motors)
Approval(s) QPS CRI CRI/QPS

* Accessories sold separately

4” Upholstery Tool Wand Assembly
Carpet Extractor Accessory Carpet Extractor Accessory
Code Format Code Type
19689 Stainless Steel 19688 Straight 3 Jets Wand
19690 Plastic 19695 Dual Jet Curved Wand

Hose
Carpet Extractor Accessory
Code Type
19691 Hide-A-Hose (Blue) 15’
19692 Hide-A-Hose (Blue) 20’
19694 Vacuum & Solution HD
Hose 25 – use with 19387
