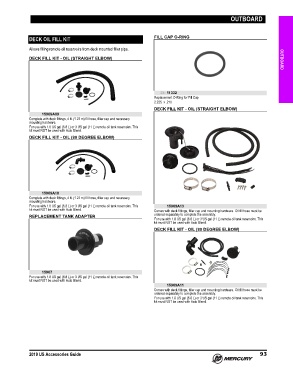

Page 106 - US ACCESSORIES GUIDE (2019)

OUTBOARD

DECK OIL FILL KIT FILL CAP O-RING

Allows filling remote oil reservoirs from deck mounted filler pipe.

DECK FILL KIT - OIL (STRAIGHT ELBOW) OUTBOARD

25- 11332
Replacement O‑Ring for Fill Cap
2.225 x .210
DECK FILL KIT - OIL (STRAIGHT ELBOW)
15969A09
Complete with deck fittings, 4 ft. (1.22 m) fill hose, filler cap and necessary
mounting hardware.
For use with 1.8 US gal (6.8 L) or 3 US gal (11 L) remote oil tank reservoirs. This
kit must NOT be used with Auto Blend.
DECK FILL KIT - OIL (80 DEGREE ELBOW)

15969A10
Complete with deck fittings, 4 ft. (1.22 m) fill hose, filler cap and necessary
mounting hardware.
For use with 1.8 US gal (6.8 L) or 3 US gal (11 L) remote oil tank reservoirs. This 15969A13
kit must NOT be used with Auto Blend. Comes with deck fittings, filler cap and mounting hardware. Oil fill hose must be
REPLACEMENT TANK ADAPTER ordered separately to complete the assembly.
For use with 1.8 US gal (6.8 L) or 3 US gal (11 L) remote oil tank reservoirs. This
kit must NOT be used with Auto Blend.
DECK FILL KIT - OIL (80 DEGREE ELBOW)

15967
For use with 1.8 US gal (6.8 L) or 3 US gal (11 L) remote oil tank reservoirs. This
kit must NOT be used with Auto Blend.
15969A11
Comes with deck fittings, filler cap and mounting hardware. Oil fill hose must be
ordered separately to complete the assembly.
For use with 1.8 US gal (6.8 L) or 3 US gal (11 L) remote oil tank reservoirs. This
kit must NOT be used with Auto Blend.

2019 US Accessories Guide 93
