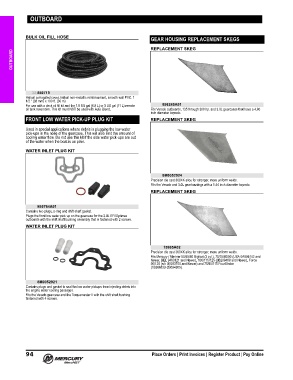

Page 107 - US ACCESSORIES GUIDE (2019)

OUTBOARD

BULK OIL FILL HOSE
GEAR HOUSING REPLACEMENT SKEGS
REPLACEMENT SKEG
OUTBOARD

32-850719
Helical corrugated cover, helical non‑metallic reinforcement, smooth wall PVC. 1
1/2 " (38 mm) x 100 ft. (30 m)
For use with a deck oil fill kit and the 1.8 US gal (6.8 L) or 3 US gal (11 L) remote 898245A01
oil tank reservoirs. This kit must NOT be used with Auto Blend. Fits Verado outboards, 135 through 300 hp. and 3.0L gearcases that have a 4.80
inch diameter torpedo.
FRONT LOW WATER PICK-UP PLUG KIT REPLACEMENT SKEG

Used in special applications where debris is plugging the low water
pick‑ups in the nose of the gearcase. This will also limit the amount of
cooling water flow. Do not use this kit if the side water pick‑ups are out
of the water when the boat is on plain.

WATER INLET PLUG KIT

8M0052924
Precision die cast 360XK alloy for stronger, more uniform welds.
Fits the Verado and 3.0L gearhousings with a 5.44 inch diameter torpedo.
REPLACEMENT SKEG

895764A01
Contains two plugs, o‑ring and shift shaft gasket.
Plugs the front low water pick‑up on the gearcase for the 3.0L EFI/Optimax
outboards with the shift shaft bushing assembly that is fastened with 2 screws.
WATER INLET PLUG KIT

15985A02
Precision die cast 360XK alloy for stronger, more uniform welds.
Fits Mercury / Mariner 50/55/60 Bigfoot (3 cyl.), 70/75/80/90 (USA 0A996142 and
Newer, BEL 9483121 and Newer), 100/115/125 (0B209468 and Newer), Force
90/120 (s/n 0E093700 and Newer) and 75/90/115 FourStroke
(1B366823‑2B094955).

8M0052921
Contains plugs and gasket to seal the low water pickups from injesting debris into
the engine water cooling passages.
Fits the Verado gearcase and the Torquemaster II with the shift shaft bushing
fastened with 4 screws.

94 Place Orders | Print Invoices | Register Product | Pay Online
