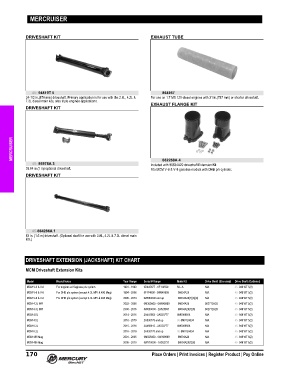

Page 183 - US ACCESSORIES GUIDE (2019)

MERCRUISER

DRIVESHAFT KIT EXHAUST TUBE

45- 94819T 5 864957
34‑1/2 in.(876 mm) driveshaft. Primary application is for use with the 2.8L, 4.2L & For use on 1.7 MS 120 diesel engines with 31 in.(787 mm) or shorter driveshaft.
7.3L diesel main kits, also triple engines applications.
EXHAUST FLANGE KIT
DRIVESHAFT KIT

MERCRUISER

862268A 4
45- 86978A 3 Included with 98634A20 driveshaft Extension Kit
39.64 in.(1 m) optional driveshaft. Fits MCM V‑6 & V‑8 gasoline models with DHB p/s cylinder.
DRIVESHAFT KIT

45-864286A 1
63 in. (1.6 m) driveshaft. (Optional shaft for use with 2.8L, 4.2L & 7.3L diesel main
kits.)

DRIVESHAFT EXTENSION (JACKSHAFT) KIT CHART

MCM Driveshaft Extension Kits

Model Model Notes Year Range Serial # Range Main Kit Drive Shaft (Standard) Drive Shaft (Optional)
MCM V-6 & V-8 For engines w/ Saginaw p/s system 1991 - 1993 0D445877 - 0F114599 N.L.A. N/A 45- 94819T 5(2)
MCM V-6 & V-8 For DHB p/s system (except 4.3L MPI & 496 Mag) 1994 - 2006 0F114600 - 0W649999 98634A20 N/A 45- 94819T 5(2)
MCM V-6 & V-8 For DHB p/s system (except 4.3L MPI & 496 Mag) 2006 - 2014 0W650000 and up 98634A20(7)(8)(9) N/A 45- 94819T 5(2)
MCM 4.3L MPI 2002 - 2006 0M300000 - 0W649999 98634A20 862772A28 45- 94819T 5(2)
MCM 4.3L MPI 2006 - 2016 0W650000 - 2A528897 98634A20(7)(8) 862772A28 45- 94819T 5(2)
MCM 4.5L 2014 - 2016 2A441953 - 2A530777 8M0089506 N/A 45- 94819T 5(2)
MCM 4.5L 2016 - 2019 2A530778 and up 98-8M0124634 N/A 45- 94819T 5(2)
MCM 6.2L 2015 - 2016 2A456613 - 2A530777 8M0089506 N/A 45- 94819T 5(2)
MCM 6.2L 2016 - 2019 2A530778 and up 98-8M0124634 N/A 45- 94819T 5(2)
MCM 496 Mag 2001 - 2005 0M025000 - 0W309999 98634A20 N/A 45- 94819T 5(2)
MCM 496 Mag 2005 - 2010 0W310000 - 1A352731 98634A20(7)(8) N/A 45- 94819T 5(2)
170 Place Orders | Print Invoices | Register Product | Pay Online
