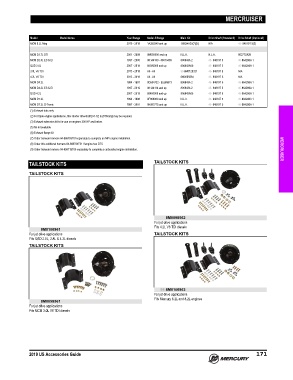

Page 184 - US ACCESSORIES GUIDE (2019)

MERCRUISER

Model Model Notes Year Range Serial # Range Main Kit Drive Shaft (Standard) Drive Shaft (Optional)
MCM 8.2L Mag 2010 - 2019 1A350340 and up 98634A20(7)(8) N/A 45- 94819T 5(2)

MCM D1.7L DTI 2001 - 2009 0M055000 and up N.L.A. N.L.A. 862772A28
MCM D2.8L ES & EI 1997 - 2005 0K144109 - 88010499 806843A 2 45- 94819T 5 45-864286A 1
QSD 2.8L 2007 - 2019 88300000 and up 806843A06 45- 94819T 5 45-864286A 1
3.0L V6 TDI 2013 - 2019 All - All 98-8M0120321 45- 94819T 5 N/A
4.2L V8 TDI 2013 - 2019 All - All 8M0085664 45- 94819T 5 N/A
MCM D4.2L 1994 - 1997 0D554732 - 0L668673 806843A 2 45- 94819T 5 45-864286A 1
MCM D4.2L ES & EI 1997 - 2019 0K144114 and up 806843A 2 45- 94819T 5 45-864286A 1
QSD 4.2L 2007 - 2019 88400000 and up 806843A06 45- 94819T 5 45-864286A 1
MCM D7.3L 1994 - 1996 0F060000 and up N.L.A. 45- 94819T 5 45-864286A 1
MCM D7.3L D-Tronic 1997 - 2001 0K095775 and up N.L.A. 45- 94819T 5 45-864286A 1
(1) Exhaust tube only
(2) For triple engine applications, this shorter driveshaft [34-1/2 in.(876mm)] may be required.
(3) Exhaust extension kit is for use on engines 300 HP and below.
(5) No kit available
(6) Exhaust flange kit
(7) Order transom harness 84-866785T01separately to complete an MPI engine installation.
(8) Order this additional harness 84-866784T01 if engine has DTS
(9) Order transom harness 84-899719T05 separately to complete a carburated engine installation. MERCRUISER

TAILSTOCK KITS TAILSTOCK KITS

TAILSTOCK KITS

8M0098562
For jet drive applications
Fits 4.2L V8 TDI diesels
8M0106961
For jet drive applications TAILSTOCK KITS
Fits QSD 2.0L, 2.8L & 4.2L diesels
TAILSTOCK KITS

98-8M0106963
For jet drive applications
Fits Mercury 6.2L and 8.2L engines
8M0098561
For jet drive applications
Fits MCM 3.0L V6 TDI diesels

2019 US Accessories Guide 171
