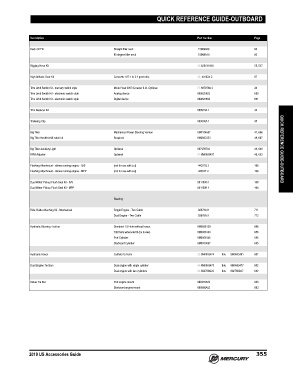

Page 368 - US ACCESSORIES GUIDE (2019)

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Deck Oil Fill Straight filler neck 15969A09 93
80 degree filler neck 15969A10 93

Rigging Hose Kit 32-825191A03 55, 537

High Altitude Gear Kit Converts 1.87:1 to 2:1 gear ratio 43- 44102A 2 67

Trim Limit Switch Kit - mercury switch style Model Year 2003 & newer 3.0L Optimax 87-887979A 2 34
Trim Limit Switch Kit - electronic switch style Analog device 899625K02 650
Trim Limit Switch Kit - electronic switch style Digital device 899625K04 651

Trim Reducer Kit 858915A 1 34

Trailering Clip 833006A 1 35

Big Tiller Mechanical Power Steering Version 8M0134607 47, 666
Big Tiller throttle/shift cable kit Required 8M0082353 48, 667

Big Tiller Auxiliary Light Optional 897978T02 49, 668 QUICK REFERENCE GUIDE-OUTBOARD
RPM Adjuster Optional 87-8M0083437 48, 653

Flushing Attachment - allows running engine - Q/S (not for use with Jet) 44357Q 2 168
Flushing Attachment - allows running engine - MPP (not for use with Jet) 44357T 2 168

Dual Water Pickup Flush Seal Kit - Q/S 881150Q 1 168
Dual Water Pickup Flush Seal Kit - MPP 881150K 1 168

Steering

Ride Guide Attaching Kit - Mechanical Single Engine - Two Cable 92876A 8 711
Dual Engine - Two Cable 92876A 9 712

Hydraulic Steering - bolt on Standard 1.5 Helm without hoses 8M0056139 686
Tilit Helm w/remote fill (no hoses) 8M0056140 686
Port Cylinder 8M0056145 685
Starboard Cylinder 8M0050097 685

Hydraulic Hoses Cylinder to Helm 32-8M0053474 thru 8M0053491 687

Dual Engine Tie Bars Dual engine with single cylinder 64-8M0063473 thru 8M0063477 682
Dual engine with two cylinders 64-892789Q22 thru 892789Q27 682

Kicker Tie Bar Port engine mount 898370A03 683
Starboard engine mount 898966A02 683

2019 US Accessories Guide 355
