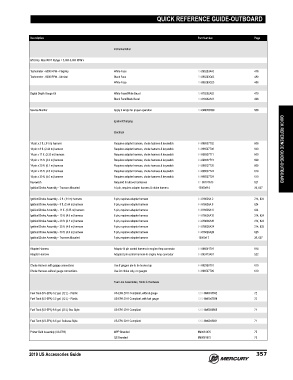

Page 370 - US ACCESSORIES GUIDE (2019)

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Instrumentation

8/9.9 Hp. Max WOT Range = 5,000-6,000 RPM's

Tachometer - 6000 RPM - Flagship White Face 79-895283A43 476
Tachometer - 6000 RPM - Admiral Black Face 79-895283Q03 480
White Face 79-895283Q23 488

Digital Depth Gauge Kit White Face/White Bezel 79-879292A02 473
Black Face/Black Bezel 79-879292A01 468

Service Monitor Apply 3 wraps for proper operation 79-8M0050399 506

Ignition/Charging

Electrical

14 pin x 2 ft. (.61 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T02 609
14 pin x 8 ft. (2.44 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T08 609 QUICK REFERENCE GUIDE-OUTBOARD
14 pin x 11 ft. (3.35 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T11 609
14 pin x 15 ft. (4.6 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T15 609
14 pin x 20 ft. (6.1 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T20 609
14 pin x 25 ft. (4.6 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T24 610
14 pin x 30 ft. (4.6 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T29 610
Keyswitch Required for above harnesses 87- 88107A13 621
Ignition/Choke Assembly - Transom Mounted 14 pin, requires adapter harness & choke harness 15000A14 39, 627

Ignition/Choke Assembly - 2 ft. (.61 m) harness 8 pin, requires adapter harness 84-816626A 2 214, 624
Ignition/Choke Assembly - 8 ft. (2.44 m) harness 8 pin, requires adapter harness 84-816626A 8 624
Ignition/Choke Assembly - 11 ft. (3.35 m) harness 8 pin, requires adapter harness 84-816626A11 624
Ignition/Choke Assembly - 15 ft. (4.6 m) harness 8 pin, requires adapter harness 84-816626A15 214, 624
Ignition/Choke Assembly - 20 ft. (6.1 m) harness 8 pin, requires adapter harness 84-816626A20 214, 624
Ignition/Choke Assembly - 25 ft. (4.6 m) harness 8 pin, requires adapter harness 84-816626A24 214, 625
Ignition/Choke Assembly - 30 ft. (4.6 m) harness 8 pin, requires adapter harness 84-816626A29 625
Ignition/Choke Assembly - Transom Mounted 8 pin, requires adapter harness 15000A 7 38, 627

Adapter Harness Adapts 14 pin control harness to engine Amp connector 84-896541T01 618
Adapter Harness Adapts 8 pin control harness to engine Amp connector 84-892473A01 522

Choke Harness with gauge connections Use if gauges are to be hooked up 84-892990T01 610
Choke Harness without gauge connections Use for choke only, no gauges 84-896537T99 610

Fuel Line Assemblies, Tanks & Hardware

Fuel Tank (US-EPA) 3.2 gal. (12 L) - Plastic US-EPA 2011 Compliant, without gauge 1200-8M0045692 72
Fuel Tank (US-EPA) 3.2 gal. (12 L) - Plastic US-EPA 2011 Compliant, with fuel gauge 1200-8M0047598 72

Fuel Tank (US-EPA) 6.6 gal. (25 L) Box Style US-EPA 2011 Compliant 1200-8M0054600 71

Fuel Tank (US-EPA) 6.6 gal. Suitcase Style US-EPA 2011 Compliant 1200-8M0045691 71

Primer Bulb Assembly (US-EPA) MPP Branded 8M0061876 75
QS Branded 8M0061875 75

2019 US Accessories Guide 357
