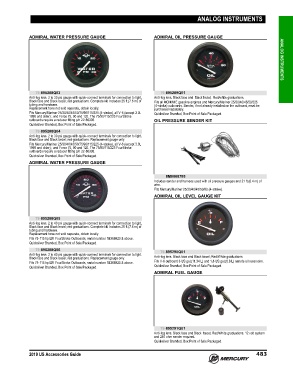

Page 496 - US ACCESSORIES GUIDE (2019)

ANALOG INSTRUMENTS

ADMIRAL WATER PRESSURE GAUGE ADMIRAL OIL PRESSURE GAUGE ANALOG INSTRUMENTS

79-895288Q03 79-895289Q01
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light. Anti‑fog lens. Black face and Black bezel; Red/white graduations.
Black face and Black bezel; red graduations. Complete kit. Includes 25 ft.(7.6 m) of Fits all MCM/MIE gasoline engines and Mercury/Mariner 25/30/40/45/50/225
tubing and hardware. (4‑stroke) outboards. Sender, if not already installed on the outboard, must be
Replacement hose not sold separate, obtain locally. purchased separately.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L Quicksilver Branded, Box Point of Sale Packaged.
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306. OIL PRESSURE SENDER KIT
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q04
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; red graduations. Replacement gauge only.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE

8M0068785
Includes sender and harness used with oil pressure gauges and 21 ft.(6.4 m) of
wire.
Fits Mercury/Mariner 25/30/40/45/50/60 (4‑stroke).
ADMIRAL OIL LEVEL GAUGE KIT

79-895288Q05
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; red graduations. Complete kit. Includes 25 ft.(7.6 m) of
tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q06 79-895290Q01
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; red graduations. Replacement gauge only. Anti‑fog lens. Black face and Black bezel; Red/White graduations.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above. Fits V‑6 outboard 3 US gal.(11.34 L) and 1.8 US gal.(6.8 L) remote oil reservoirs.
Quicksilver Branded, Box Point of Sale Packaged. Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL FUEL GAUGE

79-895291Q01
Anti‑fog lens. Black face and Black bezel; Red/White graduations. 12 volt system
and 240 ohm sender required.
Quicksilver Branded, Box Point of Sale Packaged.

2019 US Accessories Guide 483
