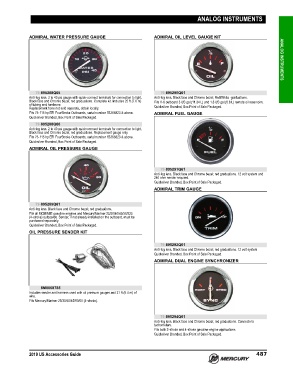

Page 500 - US ACCESSORIES GUIDE (2019)

ANALOG INSTRUMENTS

ADMIRAL WATER PRESSURE GAUGE ADMIRAL OIL LEVEL GAUGE KIT ANALOG INSTRUMENTS

79-895288Q65 79-895290Q61
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light. Anti‑fog lens. Black face and Chrome bezel; Red/White graduations.
Black face and Chrome bezel; red graduations. Complete kit. Includes 25 ft.(7.6 m) Fits V‑6 outboard 3 US gal.(11.34 L) and 1.8 US gal.(6.8 L) remote oil reservoirs.
of tubing and hardware.
Replacement hose not sold separate, obtain locally. Quicksilver Branded, Box Point of Sale Packaged.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above. ADMIRAL FUEL GAUGE
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q66
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
Black face and Chrome bezel; red graduations. Replacement gauge only.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL OIL PRESSURE GAUGE

79-895291Q61
Anti‑fog lens. Black face and Chrome bezel; red graduations. 12 volt system and
240 ohm sender required.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL TRIM GAUGE

79-895289Q61
Anti‑fog lens. Black face and Chrome bezel; red graduations.
Fits all MCM/MIE gasoline engines and Mercury/Mariner 25/30/40/45/50/225
(4‑stroke) outboards. Sender, if not already installed on the outboard, must be
purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
OIL PRESSURE SENDER KIT

79-895292Q61
Anti‑fog lens. Black face and Chrome bezel; red graduations. 12 volt system
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL DUAL ENGINE SYNCHRONIZER

8M0068785
Includes sender and harness used with oil pressure gauges and 21 ft.(6.4 m) of
wire.
Fits Mercury/Mariner 25/30/40/45/50/60 (4‑stroke).

79-895294Q61
Anti‑fog lens. Black face and Chrome bezel; red graduations. Connects to
tachometers.
Fits both 2‑stroke and 4‑stroke gasoline engine applications.
Quicksilver Branded, Box Point of Sale Packaged.

2019 US Accessories Guide 487
