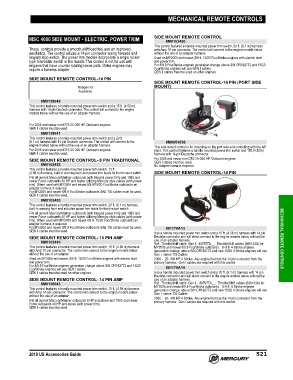

Page 534 - US ACCESSORIES GUIDE (2019)

MECHANICAL REMOTE CONTROLS

MSC 4000 SIDE MOUNT - ELECTRIC, POWER TRIM SIDE MOUNT REMOTE CONTROL
8M0103450
This control features a handle mounted power trim switch, 20 ft. (6.1 m) harness
These controls provide a smooth shift/load feel and an improved with Amp 10‑pin connector. The control will connect to the engine models below
aesthetics. The control utilizes a 14 pin connector wiring harness and without the use of an adapter harness.
lanyard stop switch. The power trim models incorporate a single rocker Used on MY2005 and newer, 8/9.9, 15/20 FourStroke engines with electric start
type trim/trailer switch in the handle.This control is not for use with and power trim.
engines that have counter rotating lower units. Older engines may For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
require a harness adapter. FourStroke engines will use GEN I cables.
GEN II cables must be used on other engines.
SIDE MOUNT REMOTE CONTROL-14 PIN
SIDE MOUNT REMOTE CONTROL-14 PIN (PORT SIDE
MOUNT)

8M0138640
This control features a handle mounted power trim switch and a 15 ft. (4.58 m)
harness with 14 pin Deutsch connector. The control will connect to the engine
models below without the use of an adapter harness.

For 2006 and newer non DTS 25‑300 HP Outboard engines.
GEN II cables must be used.
8M0138641
This control features a handle mounted power trim switch and a 20 ft.
(6.1 m) harness with 14 pin Deutsch connector. The control will connect to the 8M0053636
engine models below without the use of an adapter harness. This side mount control is for mounting on the port side and controlling with the left
For 2006 and newer non DTS 25‑300 HP Outboard engines. hand. This control features a handle mounted power trim switch and 15ft.(4.58m)
GEN II cables must be used. harness with 14 pin Deutsche connector.
SIDE MOUNT REMOTE CONTROL- 8 PIN TRADITIONAL For 2006 and newer non DTS 25‑300 HP Outboard engines.
GEN I cables must be used.
8M0103452 No Adapter harness required.
This control features a handle mounted power trim switch, 15 ft.
(4.58 m) harness, built‑in warning horn and power trim leads for front mount switch. SIDE MOUNT REMOTE CONTROL-14 PIN
Fits all current Mercury/Mariner outboards (with integral power trim) and 1993 and
newer Force outboards 40 HP and higher utilizing Mercury style cables (with power
trim). When used with MY2005 and newer 8/9.9/15/20 FourStroke outboards an
adapter harness is required.
For MY2005 and newer 8/9.9 FourStroke outboards SAE T/S cables must be used.
GEN II cables must be used.
8M0103453
This control features a handle mounted power trim switch, 20 ft. (6.1 m) harness,
built‑in warning horn and includes power trim leads for front mount switch.
Fits all current Mercury/Mariner outboards (with integral power trim) and 1993 and
newer Force outboards 40 HP and higher utilizing Mercury style cables (with power
trim). When used with MY2005 and newer 8/9.9, 15/20 FourStroke outboards an
adapter harness is required.
For MY2005 and newer 8/9.9 FourStroke outboards SAE T/S cables must be used. 881170A13
GEN II cables must be used.
Has a handle mounted power trim switch and a 15 ft. (4.58 m) harness with 14 pin
SIDE MOUNT REMOTE CONTROL- 10 PIN AMP Deutshe connector and will direct connect to the engine models below without the MECHANICAL REMOTE CONTROLS
8M0103449 use of an adapter harness.
Ref. Throttle/shift cable Gen I ‑ 897977A__. Throttle/Shift cables (896143A) for
This control features a handle mounted power trim switch, 15 ft. (4.58 m) harness MY2005 and newer 8/9.9 FourStroke outboards. 8‑9.9 4 Stroke engines
with Amp 10‑pin connector. The control will connect to the engine models below generation change above S/N OR192772 and new 15/20 4 Stroke engines will use
without the use of an adapter. Gen I series T/S Cables
Used on MY2005 and newer, 8/9.9, 15/20 FourStroke engines with electric start 2006 ‑ 25‑ 300 HP 4 Stroke Any engine that has the 14 pin connector from the
and power trim. primary harness. Gen I cables are required with this control
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20 881170A14
FourStroke engines will use GEN I cables.
GEN II cables must be used on other engines. Has a handle mounted power trim switch and a 20 ft. (6.1 m) harness with 14 pin
Deutshe connector and will direct connect to the engine models below without the
SIDE MOUNT REMOTE CONTROL- 14 PIN AMP use of an adapter harness.
8M0138643 Ref. Throttle/shift cable Gen I ‑ 897977A__. Throttle/Shift cables (896143A) for
This control features a handle mounted power trim switch, 15 ft. (4.58 m) harness MY2005 and newer 8/9.9 FourStroke outboards. 8‑9.9 4 Stroke engines
generation change above S/N OR192772 and new 15/20 4 Stroke engines will use
with Amp 14‑pin connector. The control will connect to the engine models below Gen I series T/S Cables
without the use of an adapter. 2006 ‑ 25‑ 300 HP 4 Stroke Any engine that has the 14 pin connector from the
Fits all current Mercury/Mariner outboards 6 HP and above and 1993 and newer primary harness. Gen I cables are required with this control
Force outboards 40 HP and above (with power trim).
GEN II cables must be used.

2019 US Accessories Guide 521
