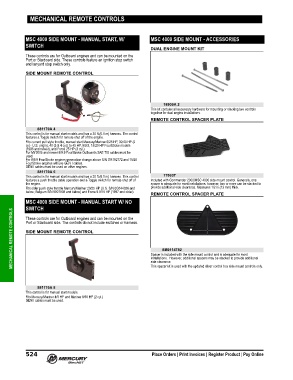

Page 537 - US ACCESSORIES GUIDE (2019)

MECHANICAL REMOTE CONTROLS

MSC 4000 SIDE MOUNT - MANUAL START, W/ MSC 4000 SIDE MOUNT - ACCESSORIES
SWITCH
DUAL ENGINE MOUNT KIT
These controls are for Outboard engines and can be mounted on the
Port or Starboard side. These controls feature an ignition stop switch
and lanyard stop switch only.
SIDE MOUNT REMOTE CONTROL

16909A 2
This kit contains all necessary hardware for mounting or stacking two controls
together for dual engine installations.
REMOTE CONTROL SPACER PLATE

881170A 4
This control is for manual start models and has a 20 ft.(6.1 m) harness. The control
features a Toggle switch for remote shut off of the engine.
Fits current pull style throttle, manual start Mercury/Mariner 6/25 HP, 30/40 HP (2
cyl.‑ U.S. origin), 40 (3 & 4 cyl.) to 45 HP, 8/9.9, 15/20 HP FourStroke models
(1996 and newer), and Force 25 HP (3 cyl.)
For MY2005 and newer 8/9.9 FourStroke Outboards SAE T/S cables must be
used.
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
FourStroke engines will use GEN I cables.
GEN I cables must be used on other engines.
881170A 6
This control is for manual start models and has a 20 ft.(6.1 m) harness. This control 17063T
features a push throttle cable operation and a Toggle switch for remote shut off of Included with Commander 2000/MSC 4000 side mount control. Generally, one
the engine. spacer is adequate for most installations: however, two or more can be stacked to
Fits older push style throttle Mercury/Mariner 20/25 HP (U.S. S/N 0G044026 and provide additional side clearance. Measures 1/2 in.(13 mm) thick.
below; Belgium S/N 9807908 and below) and Force 9.9/15 HP (1997 and older).
REMOTE CONTROL SPACER PLATE
MSC 4000 SIDE MOUNT - MANUAL START W/ NO
SWITCH
MECHANICAL REMOTE CONTROLS SIDE MOUNT REMOTE CONTROL Spacer is included with the side mount control and is adequate for most
These controls are for Outboard engines and can be mounted on the
Port or Starboard side. The controls do not include switches or harness.

8M0114782

installations. However, additional spacers may be stacked to provide additional
side clearance.

881170A 8 This spacer kit is used with the updated silver control box side mount controls only.
This control is for manual start models.
Fits Mercury/Mariner 4/5 HP and Mariner 8/55 HP (2 cyl.)
GEN I cables must be used.

524 Place Orders | Print Invoices | Register Product | Pay Online
