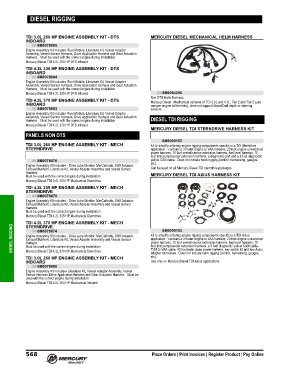

Page 581 - US ACCESSORIES GUIDE (2019)

DIESEL RIGGING

TDI 3.0L 260 HP ENGINE ASSEMBLY KIT - DTS MERCURY DIESEL MECHANICAL HELM HARNESS
INBOARD
98-8M0078885
Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly, Vessel Sensor Harness, Drive Application Harness and Gear Actuation
Harness. Must be used with the correct engine during installation
Mercury Diesel TDI 3.0L 260 HP DTS Inboard
TDI 4.2L 335 HP ENGINE ASSEMBLY KIT - DTS
INBOARD
98-8M0078884
Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly, Vessel Sensor Harness, Drive Application Harness and Gear Actuation
Harness. Must be used with the correct engine during installation
Mercury Diesel TDI 4.2L 335 HP DTS Inboard 84-8M0084296
Non DTS Helm Harness
TDI 4.2L 370 HP ENGINE ASSEMBLY KIT - DTS Mercury Diesel: Mechanical versions of TDI 3.0L and 4.2L, Tier 2 and Tier 3 (use
INBOARD one per engine at the helm), does not support SmartCraft depth or steering
98-8M0078883 sensors
Engine Assembly Kit includes Fuel Module, Literature Kit, Vessel Adapter
Assembly, Vessel Sensor Harness, Drive Application Harness and Gear Actuation
Harness. Must be used with the correct engine during installation DIESEL TDI RIGGING
Mercury Diesel TDI 4.2L 370 HP DTS Inboard
MERCURY DIESEL TDI STERNDRIVE HARNESS KIT
PANELS NON DTS
8M0099152
TDI 3.0L 260 HP ENGINE ASSEMBLY KIT - MECH Kit to simplify ordering engine rigging components specific to a TDI Sterndrive
STERNDRIVE application ‑ contains a 3 meter engine to VAA harness, 20 foot engine unswitched
power harness, 10 foot vessel sensor extension harness, fuel level harness, 10
foot trim pump/sender extension harness, a diagnostic port and a 3 foot diagnostic
98-8M0078878 yellow CAN cable. Does not include helm rigging (control, harnessing, gauges,
Engine Assembly Kit includes ‑ Drive Lube Monitor, MerCathode, Shift Actuator, etc).
Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and Vessel Sensor Can be used on all Mercury Diesel TDI sterndrive packages.
Harness. MERCURY DIESEL TDI AXIUS HARNESS KIT
Must be used with the correct engine during installation
Mercury Diesel TDI 3.0L 260 HP Mechanical Sterndrive
TDI 4.2L 335 HP ENGINE ASSEMBLY KIT - MECH
STERNDRIVE
98-8M0078876
Engine Assembly Kit includes ‑ Drive Lube Monitor, MerCathode, Shift Actuator,
Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and Vessel Sensor
Harness.
Must be used with the correct engine during installation
Mercury Diesel TDI 4.2L 335 HP Mechanical Sterndrive
TDI 4.2L 370 HP ENGINE ASSEMBLY KIT - MECH
DIESEL RIGGING Engine Assembly Kit includes ‑ Drive Lube Monitor, MerCathode, Shift Actuator, Kit to simplify ordering engine rigging components specific to a TDI Axius
STERNDRIVE
8M0099153
98-8M0078874
application ‑ contains a 3 meter engine to VAA harness, 20 foot engine unswitched
Exhaust Bullhorn, Literature Kit, Vessel Adapter Assembly and Vessel Sensor
power harness, 10 foot vessel sensor extension harness, fuel level harness, 10
Harness.
foot trim pump/sender extension harness, a 3 foot diagnostic yellow CAN cable,
Must be used with the correct engine during installation
Mercury Diesel TDI 4.2L 370 HP Mechanical Sterndrive
adapter harnesses. Does not include helm rigging (control, harnessing, gauges,
etc).
TDI 3.0L 260 HP ENGINE ASSEMBLY KIT - MECH TVM to VAA cable, 40 foot helm clean power harness, key switch kit and two Axius
INBOARD Use only on Mercury Diesel TDI Axius applications
98-8M0078886
Engine Assembly Kit includes‑ Literature Kit, Vessel Adapter Assembly, Vessel
Sensor Harness, Drive Application Harness and Gear Actuation Harness. Must be
used with the correct engine during installation
Mercury Diesel TDI 3.0L 260 HP Mechanical Inboard
