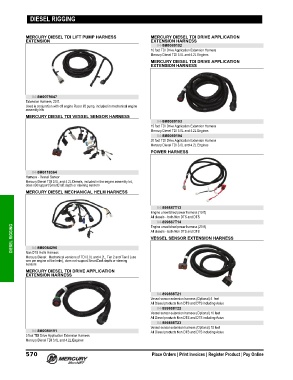

Page 583 - US ACCESSORIES GUIDE (2019)

DIESEL RIGGING

MERCURY DIESEL TDI LIFT PUMP HARNESS MERCURY DIESEL TDI DRIVE APPLICATION
EXTENSION EXTENSION HARNESS
84-8M0080192
10 foot TDI Drive Application Extension Harness
Mercury Diesel TDI 3.0L and 4.2L Engines
MERCURY DIESEL TDI DRIVE APPLICATION
EXTENSION HARNESS

84-8M0079847
Extension Harness, 20 ft.
Used in conjunction with off engine Racor lift pump, included in mechanical engine
assembly kits
MERCURY DIESEL TDI VESSEL SENSOR HARNESS
84-8M0080193
15 foot TDI Drive Application Extension Harness
Mercury Diesel TDI 3.0L and 4.2L Engines
84-8M0080194
20 foot TDI Drive Application Extension Harness
Mercury Diesel TDI 3.0L and 4.2L Engines
POWER HARNESS

84-8M0118364
Harness ‑ Vessel Sensor
Mercury Diesel TDI 3.0L and 4.2L Diesels, included in the engine assembly kit,
does not support SmartCraft depth or steering sensors
MERCURY DIESEL MECHANICAL HELM HARNESS

84-899887T13
Engine unswitched power harness (10 ft)
All diesels ‑ both Non DTS and DTS
84-899887T14
DIESEL RIGGING 84-8M0084296 All diesels ‑ both Non DTS and DTS
Engine unswitched power harness (20 ft)

VESSEL SENSOR EXTENSION HARNESS

Non DTS Helm Harness
Mercury Diesel: Mechanical versions of TDI 3.0L and 4.2L, Tier 2 and Tier 3 (use
one per engine at the helm), does not support SmartCraft depth or steering
sensors
MERCURY DIESEL TDI DRIVE APPLICATION
EXTENSION HARNESS

84-899888T21
Vessel sensor extension harness (Optional) 5 feet
All Diesel products Non DTS and DTS including Axius
84-899888T22
Vessel sensor extension harness (Optional) 10 feet
All Diesel products Non DTS and DTS including Axius
84-899888T23
Vessel sensor extension harness (Optional) 15 feet
84-8M0080191 All Diesel products Non DTS and DTS including Axius
5 foot TDI Drive Application Extension Harness
Mercury Diesel TDI 3.0L and 4.2L Engines
