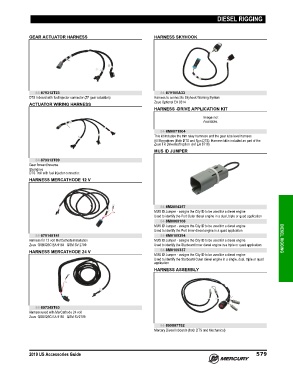

Page 592 - US ACCESSORIES GUIDE (2019)

DIESEL RIGGING

GEAR ACTUATOR HARNESS HARNESS SKYHOOK

84-879312T23 84-879150A33
DTS Inboard with fuel injector connector (ZF gear actuation) Harness to connect to Skyhook Warning System
Zeus Optional EA 8314
ACTUATOR WIRING HARNESS
HARNESS -DRIVE APPLICATION KIT

84-8M0071504
This kit includes the trim relay harnness and the gear lube level harness
All Sterndrives (Both DTS and Non DTS) Harness kit is included as part of the
Zeus TR Driveshaft option (ref EA 8718)
MUS ID JUMPER
84-879312T09
Gear forward/reverse.
Sterndrive
DTS Troll with fuel injector connector.
HARNESS MERCATHODE 12 V

84-8M2004357
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine
Used to identify the Port Outer diesel engine in a dual, triple or quad application
84-8M0069106
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine
Used to identify the Port Inner diesel engine in a quad application
84-879148T41 84-8M0109294
Harness for 12 volt MerCathode installation MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine DIESEL RIGGING
Zeus QSB/QSC EA 9164 QSM SV 2709 Used to identify the Starboard Inner diesel engine in a triple or quad application
HARNESS MERCATHODE 24 V 84-8M0109337
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine
Used to identify the Starboard Outer diesel engine in a single, dual, triple or quad
application
HARNESS ASSEMBLY

84-897345T63
Harness used with MerCathode 24 volt
Zeus QSB/QSC EA 9165 QSM SV2709
84-899887T02
Mercury Diesel Inboards (both DTS and Mechanical)

2019 US Accessories Guide 579
