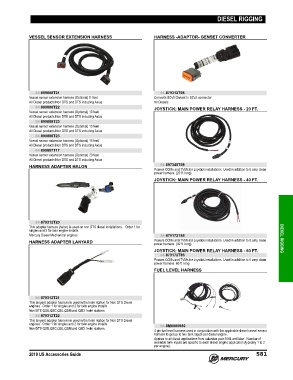

Page 594 - US ACCESSORIES GUIDE (2019)

DIESEL RIGGING

VESSEL SENSOR EXTENSION HARNESS HARNESS -ADAPTOR- GENSET CONVERTER

84-899888T21 84-879312T08
Vessel sensor extension harness (Optional) 5 feet Converts SCv1 Genset to SCv2 connector
All Diesel products Non DTS and DTS including Axius All Diesels
84-899888T22 JOYSTICK: MAIN POWER RELAY HARNESS - 20 FT.
Vessel sensor extension harness (Optional) 10 feet
All Diesel products Non DTS and DTS including Axius
84-899888T23
Vessel sensor extension harness (Optional) 15 feet
All Diesel products Non DTS and DTS including Axius
84-899888T23
Vessel sensor extension harness (Optional) 15 feet
All Diesel products Non DTS and DTS including Axius
84-899887T17
Vessel sensor extension harness (Optional) 20 feet
All Diesel products Non DTS and DTS including Axius
HARNESS ADAPTER HALON 84-897345T08
Powers CCMs and TVMs for Joystick installations. Used in addition to 5 amp clean
power harness. (20 ft. long)
JOYSTICK: MAIN POWER RELAY HARNESS - 40 FT.

84-879312T20
This adapter harness (halon) is used on non DTS diesel installations. Order 1 for
singles and 2 for twin engine installs.
Mercury Diesel Mechanical engines 84-879172T85
HARNESS ADAPTER LANYARD Powers CCMs and TVMs for Joystick installations. Used in addition to 5 amp clean DIESEL RIGGING
power harness. (40 ft. long)
JOYSTICK: MAIN POWER RELAY HARNESS - 60 FT.
84-879172T86
Powers CCMs and TVMs for Joystick installations. Used in addition to 5 amp clean
power harness. 60 ft. long
FUEL LEVEL HARNESS

84-879312T21
This lanyard adapter harness is used in the helm station for Non DTS Diesel
engines. Order 1 for singles and 2 for twin engine installs
Non DTS QSB,QSC,QSL,QSM and QSD helm stations
84-879312T22
This lanyard adapter harness is used in the helm station for Non DTS Diesel
engines. Order 1 for singles and 2 for twin engine installs 84-8M0089989
Non DTS QSB,QSC,QSL,QSM and QSD helm stations
4 pin fuel level harness used in conjunction with the applicable diesel vessel sensor
harness to get up to two tank inputs per diesel engine.
Applies to all diesel applications from calendar year 2014 and later. Number of
available tank inputs are specific to each diesel engine application (typically 1 to 2
per engine).
2019 US Accessories Guide 581
