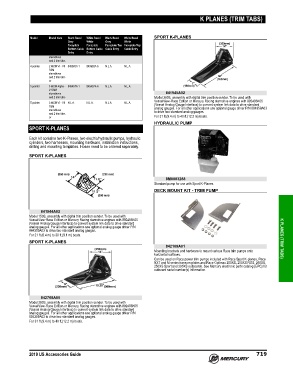

K PLANES (TRIM TABS)

Model Model Note Black Bezel White Bezel Black Bezel White Bezel SPORT K-PLANES
Gray White Gray White
Faceplate Faceplate Faceplate Top Faceplate Top
Bottom Cable Bottom Cable Cable Entry Cable Entry
Entry Entry
sterndrives
and 2 trim tabs
4 pointer 2 MCM VI - VII 845983A 1 845983A 6 N.L.A. N.L.A.
SSM
sterndrives
and 2 trim tabs
or
5 pointer 3 MCM Alpha - 845457A 1 845457A 6 N.L.A. N.L.A.
V SSM
sterndrives 841945A02
and 2 trim tabs Model 380S, assembly with digital trim position sender. To be used with
5 pointer 3 MCM VI - VII N.L.A. N.L.A. N.L.A. N.L.A. VesselView‑Race Edition or Mercury Racing sterndrive engines with 892486K05
(Vessel Analog Gauge Interface) to convert system link data to drive standard
SSM
sterndrives analog gauges. For all other applications use optional gauge driver P/N 884359A03
to drive two standard analog gauges.
and 2 trim tabs
or For 31 ft.(9.4 m) to 40 ft.(12.2 m) boats.
HYDRAULIC PUMP
SPORT K-PLANES
Each kit contains two K‑Planes, two electric/hydraulic pumps, hydraulic
cylinders, two harnesses, mounting hardware, installation instructions,
drilling and mounting templates. Hoses need to be ordered separately.
SPORT K-PLANES

8M0083288
Standard pump for use with Sport K‑Planes.
DECK MOUNT KIT - TRIM PUMP

841944A02
Model 150S, assembly with digital trim position sender. To be used with
VesselView‑Race Edition or Mercury Racing sterndrive engines with 892486K05
(Vessel Analog Gauge Interface) to convert system link data to drive standard
analog gauges. For all other applications use optional analog gauge driver P/N
884359A03 to drive two standard analog gauges.
For 21 ft.(6.4 m) to 30 ft.(9.1 m) boats.
SPORT K-PLANES K PLANES (TRIM TABS)
842109A01
Mounting brackets and hardware to mount various Race trim pumps onto
horizontal surfaces.
Can be used on Race power trim pumps included with Race Sport K‑planes, Race
NXT and M series transom plates and Race Optimax 200XS, 200XS ROS, 250XS,
250XS Sport and 300XS outboards. See Mercury electronic parts catalog (EPC) for
outboard serial number(s) information.

842768A05
Model 280S, assembly with digital trim position sender. To be used with
VesselView‑Race Edition or Mercury Racing sterndrive engines with 892486K05
(Vessel Analog Gauge Interface) to convert system link data to drive standard
analog gauges. For all other applications use optional analog gauge driver P/N
884359A03 to drive two standard analog gauges.
For 31 ft.(9.4 m) to 40 ft.(12.2 m) boats.
