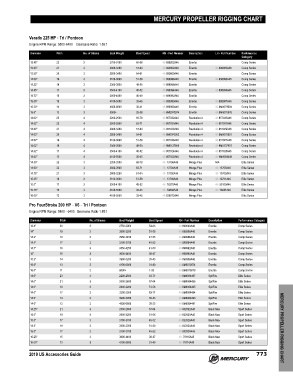

Page 786 - US ACCESSORIES GUIDE (2019)

MERCURY PROPELLER RIGGING CHART

Verado 225 HP ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.45” 22 3 2700-3100 60-68 48-899202A46 Enertia Comp Series
13.63” 21 3 2800-3200 57-64 48-899002A46 Enertia 48-899003A46 Comp Series
13.80” 20 3 2950-3400 54-61 48-899000A46 Enertia Comp Series
14.00” 19 3 3100-3600 51-58 48-898998A46 Enertia 48-898999A46 Comp Series
14.22” 18 3 3300-3850 48-55 48-898996A46 Enertia Comp Series
14.45” 17 3 3500-4100 45-52 48-898994A46 Enertia 48-898994A46 Comp Series
14.72” 16 3 3800-4800 40-49 48-898992A46 Enertia Comp Series
15.00” 15 3 4100-5500 35-45 48-898990A46 Enertia 48-898991A46 Comp Series
15.30" 14 3 4500-6000 30-41 48-898988A46 Enertia 48-8M0079504 Comp Series
15.6" 13 3 5000+ 25-38 48-8M0070074 Enertia 48-8M0070076 Comp Series
14.62” 25 4 2200-2500 69-78 48-857032A46 Revolution 4 48-857033A46 Comp Series
14.62” 23 4 2500-2800 63-71 48-857030A46 Revolution 4 48-857031A46 Comp Series
14.62” 21 4 2800-3200 57-64 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.62" 20 4 2950-3400 54-61 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
14.62” 19 4 3100-3600 51-58 48-857026A46 Revolution 4 48-857027A46 Comp Series
14.62" 18 4 3400-3800 48-54 48-8M0137906 Revolution 4 48-8M0137907 Comp Series
14.62” 17 4 3500-4100 45-52 48-857024A46 Revolution 4 48-857025A46 Comp Series
14.62” 15 4 4100-5500 35-45 48-857022A46 Revolution 4 48-8M0064449 Comp Series
14.50” 25 3 2200-2500 69-78 48- 13706A46 Mirage Plus N/A Elite Series
14.63” 23 3 2500-2800 63-71 48- 13704A46 Mirage Plus 48- 13705A46 Elite Series
14.75” 21 3 2800-3200 57-64 48- 13702A46 Mirage Plus 48- 13703A46 Elite Series
15.25” 19 3 3100-3600 51-58 48- 13700A46 Mirage Plus 48- 13701A46 Elite Series
15.5” 17 3 3500-4100 45-52 48- 18278A46 Mirage Plus 48- 90159A46 Elite Series
15.75" 15 3 4100-5500 35-45 48- 19838A46 Mirage Plus 48- 19841A46 Elite Series
16.00” 13 3 4100-5500 35-45 48-826072A46 Mirage Plus Elite Series

Pro FourStroke 200 HP ‑ V6 ‑ Tri / Pontoon
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.8" 20 3 2750-2950 54-63 48-899000A46 Enertia Comp Series
14" 19 3 2800-3200 51-58 48-898998A46 Enertia Comp Series
14.2" 18 3 2950-3450 47-55 48-898996A46 Enertia Comp Series
14.5" 17 3 3100-3700 45-52 48-898994A46 Enertia Comp Series
14.7" 16 3 3350-4250 41-50 48-898992A46 Enertia Comp Series
15" 15 3 3600-4400 38-47 48-898990A46 Enertia Comp Series
15.3" 14 3 3900-5200 35-43 48-898988A46 Enertia Comp Series
15.6" 13 3 4100-5800 31-40 48-8M0070074 Enertia Comp Series
16.0" 11 3 6000+ 1-29 48-8M0070079 Enertia Comp Series
14.0” 23 3 2200-2500 63-71 48-8M0084497 SpitFire Elite Series
14.0” 21 3 2500-2800 57-64 48-8M0084496 SpitFire Elite Series
14.0” 19 3 2800-3200 51-58 48-8M0084495 SpitFire Elite Series
14.0” 17 3 2200-2500 63-71 48-8M0084494 SpitFire Elite Series
14.0” 14 3 3900-5200 35-43 48-8M0084493 SpitFire Elite Series
14.0” 12 3 4900-6800 26-35 48-8M0084491 SpitFire Elite Series
14.25” 21 3 2500-2800 57-64 48-832832A45 Black Max Sport Series
14.5” 19 3 2800-3200 51-58 48-832830A45 Black Max Sport Series
15.0” 17 3 3100-3700 45-52 48-832828A45 Black Max Sport Series
14.5” 19 3 2800-3200 51-58 48-832830A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART
15.0” 17 3 3100-3700 45-52 48-832828A45 Black Max Sport Series
15.25" 15 3 3600-4400 38-47 48- 78116A45 Black Max Sport Series
16.00" 13 3 4100-5800 31-40 48- 78114A45 Black Max Sport Series

2019 US Accessories Guide 773
