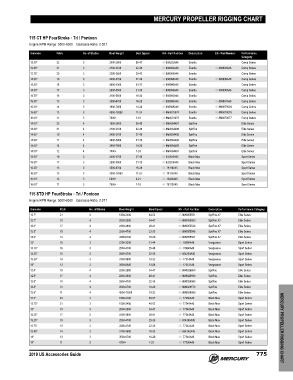

MERCURY PROPELLER RIGGING CHART

115 CT HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.50” 22 3 2000-2800 35-47 48-899202A46 Enertia Comp Series
13.80” 21 3 2100-3100 32-45 48-899002A46 Enertia 48-899003A46 Comp Series
13.75” 20 3 2300-3500 29-42 48-899000A46 Enertia Comp Series
14.00” 19 3 2400-3700 27-40 48-898998A46 Enertia 48-898999A46 Comp Series
14.20” 18 3 2600-4300 24-37 48-898996A46 Enertia Comp Series
14.50” 17 3 2800-5000 21-35 48-898994A46 Enertia 48-898995A46 Comp Series
14.70” 16 3 3100-5600 19-32 48-898992A46 Enertia Comp Series
15.00” 15 3 3500-6700 16-29 48-898990A46 Enertia 48-898991A46 Comp Series
15.30” 14 3 3900-7800 14-26 48-898988A46 Enertia 48-8M0079504 Comp Series
15.60” 13 3 4300-10300 11-24 48-8M0070074 Enertia 48-8M0070076 Comp Series
16.00” 11 3 7000+ 1-18 48-8M0070079 Enertia 48-8M0070077 Comp Series
14.00” 23 4 1900-2600 38-49 48-8M0084497 SpitFire Elite Series
14.00” 21 4 2100-3100 32-45 48-8M0084496 SpitFire Elite Series
14.00” 19 4 2400-3700 27-40 48-8M0084495 SpitFire Elite Series
14.00” 17 4 2800-5000 21-35 48-8M0084494 SpitFire Elite Series
14.00” 14 4 3900-7800 14-26 48-8M0084493 SpitFire Elite Series
14.00” 12 4 7000+ 1-24 48-8M0084491 SpitFire Elite Series
14.50” 19 3 2400-3700 27-40 48-832830A45 Black Max Sport Series
15.00” 17 3 2800-5000 21-35 48-832828A45 Black Max Sport Series
15.25” 15 3 3500-6700 16-29 48- 78116A45 Black Max Sport Series
16.00” 13 3 4300-10300 11-24 48- 78114A45 Black Max Sport Series
16.00” 12 3 5000+ 9-21 48- 16436A45 Black Max Sport Series
16.00” 11 3 7000+ 1-18 48- 78112A45 Black Max Sport Series
115 STD HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7" 21 4 1800-2400 40-52 48-8M0055551 SpitFire X7 Elite Series
12.7" 19 4 2000-2900 34-47 48-8M0055550 SpitFire X7 Elite Series
13.0" 17 4 2300-3600 28-41 48-8M0055549 SpitFire X7 Elite Series
13.5" 15 4 2800-4700 22-35 48-8M0055548 SpitFire X7 Elite Series
14.0" 13 4 3500-6700 16-29 48-8M0055547 SpitFire X7 Elite Series
13” 18 3 2200-3200 31-44 48- 16988A46 Vengeance Sport Series
13.13” 16 3 2500-4100 25-38 48- 16986A46 Vengeance Sport Series
13.25” 15 3 2800-4700 22-35 48-854354A46 Vengeance Sport Series
13.38” 14 3 3100-5600 19-32 48- 17314A46 Vengeance Sport Series
14” 12 3 3900-8500 13-26 48- 17312A46 Vengeance Sport Series
12.8” 19 4 2000-2900 34-47 48-8M8026600 SpitFire Elite Series
12.8” 17 4 2300-3600 28-41 48-8M8026590 SpitFire Elite Series
12.8” 15 4 2800-4700 22-35 48-8M8026580 SpitFire Elite Series
13.8” 13 4 3500-6700 16-29 48-8M8026570 SpitFire Elite Series
13.8” 11 4 4500-11500 10-23 48-8M8026560 SpitFire Elite Series
12.5” 23 3 1600-2100 45-57 48- 77350A45 Black Max Sport Series
12.75” 21 3 1800-2400 40-52 48- 77348A45 Black Max Sport Series
13” 19 3 2000-2900 34-47 48- 77346A45 Black Max Sport Series
13.25” 17 3 2300-3600 28-41 48- 77344A45 Black Max Sport Series
13.25” 16 3 2500-4100 25-38 48-854360A45 Black Max Sport Series
13.75” 15 3 2800-4700 22-35 48- 77342A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART
13.88” 14 3 3100-5600 19-32 48-854352A45 Black Max Sport Series
14” 13 3 3500-6700 16-29 48- 77340A45 Black Max Sport Series
14” 11 3 4700+ 1-23 48- 77338A45 Black Max Sport Series
