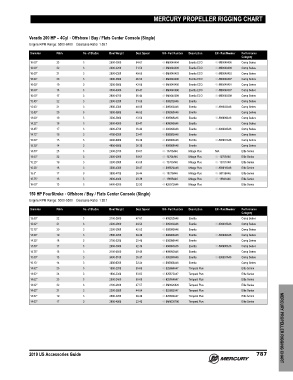

MERCURY PROPELLER RIGGING CHART

Verado 200 HP – 4Cyl ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
16.00” 23 3 2600-3000 54-61 48-8M0040404 Enertia ECO 48-8M0040405 Comp Series
16.00” 22 3 2800-3200 51-58 48-8M0040408 Enertia ECO 48-8M0040409 Comp Series
16.00” 21 3 2900-3300 49-55 48-8M0040402 Enertia ECO 48-8M0040403 Comp Series
16.00” 20 3 3000-3600 46-53 48-8M0040406 Enertia ECO 48-8M0040407 Comp Series
16.00” 19 3 3300-3900 43-50 48-8M0040400 Enertia ECO 48-8M0040401 Comp Series
16.00” 18 3 3500-4300 39-47 48-8M0040396 Enertia ECO 48-8M0040397 Comp Series
16.00” 17 3 3800-4700 36-44 48-8M0040398 Enertia ECO 48-8M0040399 Comp Series
13.45” 22 3 2800-3200 51-58 48-899202A46 Enertia Comp Series
13.63” 21 3 2900-3300 49-55 48-899002A46 Enertia 48-899003A46 Comp Series
13.80” 20 3 3000-3600 46-53 48-899000A46 Enertia Comp Series
14.00” 19 3 3300-3900 43-50 48-898998A46 Enertia 48-898999A46 Comp Series
14.22” 18 3 3500-4300 39-47 48-898996A46 Enertia Comp Series
14.45” 17 3 3800-4700 36-44 48-898994A46 Enertia 48-898994A46 Comp Series
14.72“ 16 3 4100-5200 33-41 48-898992A46 Enertia Comp Series
15.00“ 15 3 4400-6000 29-38 48-898990A46 Enertia 48-898991A46 Comp Series
15.30” 14 3 4900-6800 26-35 48-898988A46 Enertia Comp Series
14.50” 25 3 2300-2700 59-67 48- 13706A46 Mirage Plus N/A Elite Series
14.63” 23 3 2600-3000 54-61 48- 13704A46 Mirage Plus 48- 13705A46 Elite Series
15.25” 19 3 3300-3900 43-50 48- 13700A46 Mirage Plus 48- 13701A46 Elite Series
15.38” 18 3 3500-4300 39-47 48-889620A46 Mirage Plus 48-889619A46 Elite Series
15.5” 17 3 3800-4700 36-44 48- 18278A46 Mirage Plus 48- 90159A46 Elite Series
15.75” 15 3 3600-4400 29-38 48- 19838A46 Mirage Plus 48- 19841A46 Elite Series
16.00” 13 3 5400-8200 22-32 48-826072A46 Mirage Plus Elite Series
150 HP FourStroke ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.50” 22 3 2100-2600 47-57 48-899202A46 Enertia Comp Series
13.62” 21 3 2200-2800 44-54 48-899002A46 Enertia 48-899003A46 Comp Series
13.75” 20 3 2300-3000 42-52 48-899000A46 Enertia Comp Series
14.00” 19 3 2500-3200 39-49 48-898998A46 Enertia 48-898999A46 Comp Series
14.25” 18 3 2700-3200 35-46 48-898996A46 Enertia Comp Series
14.50” 17 3 2900-4000 32-43 48-898994A46 Enertia 48-898995A46 Comp Series
14.75” 16 3 3100-4500 29-40 48-898992A46 Enertia Comp Series
15.00” 15 3 3400-5100 26-37 48-898990A46 Enertia 48-898991A46 Comp Series
15.13” 14 3 3800-6200 22-34 48-898988A46 Enertia Comp Series
14.62” 25 3 1800-2200 55-65 48-825866A47 Tempest Plus Elite Series
14.62” 24 3 1900-2300 53-62 48-825872A47 Tempest Plus Elite Series
14.62” 23 3 2000-2400 50-60 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 2100-2600 47-57 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 2200-2800 44-54 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 2500-3200 39-49 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 2900-4000 32-43 48-8M8026790 Tempest Plus Elite Series

2019 US Accessories Guide 787 MERCURY PROPELLER RIGGING CHART
