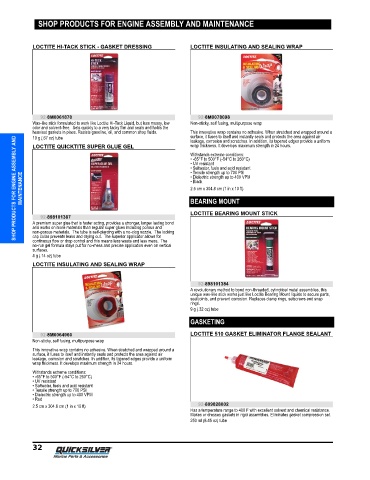

Page 37 - Quicksilver Marine Parts Guide (2020) - 8M0163275

SHOP PRODUCTS FOR ENGINE ASSEMBLY AND MAINTENANCE

LOCTITE HI-TACK STICK - GASKET DRESSING LOCTITE INSULATING AND SEALING WRAP

92-8M0061870 92-8M0078098
Wax‑like stick formulated to work like Loctite Hi‑Tack Liquid, but less messy, low Non‑sticky, self fusing, multipurpose wrap
odor and solvent‑free. Sets quickly to a very tacky film and seals and holds the
heaviest gaskets in place. Resists gasoline, oil, and common shop fluids. This innovative wrap contains no adhesive. When stretched and wrapped around a
surface, it fuses to itself and instantly seals and protects the area against air
19 g (.67 oz) tube
SHOP PRODUCTS FOR ENGINE ASSEMBLY AND MAINTENANCE • UV resistant
leakage, corrosion and scratches. In addition, its tapered edges provide a uniform
wrap thickness. It develops maximum strength in 24 hours.
LOCTITE QUICKTITE SUPER GLUE GEL
Withstands extreme conditions:
• ‑65°F to 500°F (‑54°C to 260°C)
• Saltwater, fuels and acid resistant
• Tensile strength up to 700 PSI
• Dielectric strength up to 400 VPM
• Black
2.5 cm x 304.8 cm (1 in x 10 ft)
BEARING MOUNT
LOCTITE BEARING MOUNT STICK
92-898101387
A premium super glue that is faster acting, provides a stronger, longer lasting bond
and works on more materials than regular super glues including porous and
non‑porous materials. The tube is self‑piercing with a no‑clog nozzle. The locking
cap collar prevents leaks and drying out. The superior applicator allows for
continuous flow or drop control and this means less waste and less mess. The
no‑run gel formula stays put for no‑mess and precise application even on vertical
surfaces.
4 g (.14 oz) tube
LOCTITE INSULATING AND SEALING WRAP

92-898101384
A revolutionary method to bond non‑threaded, cylindrical metal assemblies, this
unique wax‑like stick works just like Loctite Bearing Mount liquids to secure parts,
seal joints, and prevent corrosion. Replaces clamp rings, setscrews and snap
rings.
9 g (.32 oz) tube

GASKETING
92-8M0064960 LOCTITE 510 GASKET ELIMINATOR FLANGE SEALANT
Non‑sticky, self fusing, multipurpose wrap
This innovative wrap contains no adhesive. When stretched and wrapped around a
surface, it fuses to itself and instantly seals and protects the area against air
leakage, corrosion and scratches. In addition, its tapered edges provide a uniform
wrap thickness. It develops maximum strength in 24 hours.
Withstands extreme conditions:
• ‑65°F to 500°F (‑54°C to 260°C)
• UV resistant
• Saltwater, fuels and acid resistant
• Tensile strength up to 700 PSI
• Dielectric strength up to 400 VPM
• Red
2.5 cm x 304.8 cm (1 in x 10 ft) 92-809828002
Has a temperature range to 400 F with excellent solvent and chemical resistance.
Makes or dresses gaskets in rigid assemblies. Eliminates gasket compression set.
250 ml (8.45 oz) tube

32
