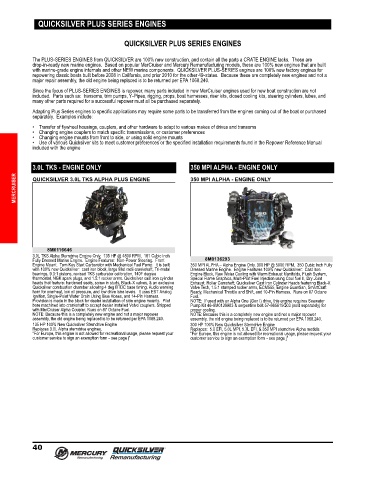

Page 57 - Repower Reference Guide (2020) 8M0149179

QUICKSILVER PLUS SERIES ENGINES

QUICKSILVER PLUS SERIES ENGINES

The PLUS‑SERIES ENGINES from QUICKSILVER are 100% new construction, and contain all the parts a CRATE ENGINE lacks. These are
drop‑in‑ready new marine engines. Based on popular MerCruiser and Mercury Remanufacturing models, these are 100% new engines that are built
with marine‑grade engine internals and other NEW marine components. QUICKSILVER PLUS‑SERIES engines are 100% new factory engines for
repowering classic boats built before 2008 in California, and prior 2010 for the other 49‑states. Because these are completely new engines and not a
major repair assembly, the old engine being replaced is to be returned per EPA 1068.240.
Since the focus of PLUS‑SERIES ENGINES is repower, many parts included in new MerCruiser engines used for new boat construction are not
included. Parts such as: transoms, trim pumps, Y‑Pipes, rigging, props, boat harnesses, riser kits, closed cooling kits, steering cylinders, lubes, and
many other parts required for a successful repower must all be purchased separately.
Adapting Plus Series engines to specific applications may require some parts to be transferred from the engines coming out of the boat or purchased
separately. Examples include:

• Transfer of flywheel housings, couplers, and other hardware to adapt to various makes of drives and transoms
• Changing engine couplers to match specific transmissions, or customer preferences
• Changing engine mounts from front to side, or using solid engine mounts
• Use of various Quicksilver kits to meet customer preferences or the specified installation requirements found in the Repower Reference Manual
included with the engine

3.0L TKS - ENGINE ONLY 350 MPI ALPHA - ENGINE ONLY
MERCRUISER QUICKSILVER 3.0L TKS ALPHA PLUS ENGINE 350 MPI ALPHA - ENGINE ONLY

8M0116646
3.0L TKS Alpha Sterndrive Engine Only. 135 HP @ 4800 RPM. 181 Cubic Inch
Fully Dressed Marine Engine. Engine Features: Non‑Power Steering. Front 8M0136293
Engine Mount. Turn Key Start Carburetor with Mechanical Fuel Pump. It is built 350 MPI ALPHA – Alpha Engine Only. 300 HP @ 5000 RPM. 350 Cubic Inch Fully
with 100% new Quicksilver: cast iron block, large fillet radii crankshaft, Tri‑metal Dressed Marine Engine. Engine Features 100% new Quicksilver: Cast Iron
bearings, 9.3:1 pistons, revised TKS carburetor calibration, 140F degree Engine Block, Raw Water Cooling with Warm Exhaust Manifolds, Flush System,
thermostat, NGK spark plugs, and 1.5:1 rocker arms. Quicksilver cast iron cylinder Special Flame Graphics, Multi‑Port Fuel Injection using Cool fuel II, Dry Joint
heads that feature: hardened seats, screw in studs, Black‑X valves, & an exclusive Exhaust, Roller Camshaft, Quicksilver Cast Iron Cylinder Heads featuring Black‑X
Quicksilver combustion chamber allowing 4 deg BTDC base timing. Audio warning Valve Tech, 1.5:1 stamped rocker arms, ECM555, Engine Guardian, SmartCraft
horn for overheat, low oil pressure, and low drive lube levels. It uses EST Analog Ready, Mechanical Throttle and Shift, and 10‑Pin Harness. Runs on 87 Octane
Ignition, Single‑Point Water Drain Using Blue Hoses, and 14‑Pin Harness. Fuel.
Provision is made in the block for dealer installation of side engine mounts. Pilot NOTE: If used with an Alpha One (Gen I) drive, this engine requires Seawater
bore machined into crankshaft to accept dealer installed Volvo couplers. Shipped Pump Kit 46‑8M0139983 & serpentine belt 57‑865615Q03 (sold separately) for
with MerCruiser Alpha Coupler. Runs on 87 Octane Fuel. proper cooling.
NOTE: Because this is a completely new engine and not a major repower NOTE: Because this is a completely new engine and not a major repower
assembly, the old engine being replaced is to be returned per EPA 1068.240. assembly, the old engine being replaced is to be returned per EPA 1068.240.
135 HP 100% New Quicksilver Sterndrive Engine 300 HP 100% New Quicksilver Sterndrive Engine
Replaces 3.0L Alpha sterndrive engines. Replaces: 5.0 EFI, 5.0L MPI, 5.7L EFI, & 350 MPI sterndrive Alpha models.
"For Europe, this engine is not allowed for recreational usage, please request your "For Europe, this engine is not allowed for recreational usage, please request your
customer service to sign an exemption form ‑ see page j" customer service to sign an exemption form ‑ see page j"
