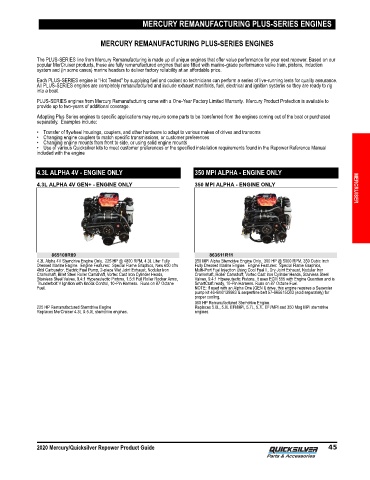

Page 62 - Repower Reference Guide (2020) 8M0149179

MERCURY REMANUFACTURING PLUS-SERIES ENGINES

MERCURY REMANUFACTURING PLUS-SERIES ENGINES

The PLUS‑SERIES line from Mercury Remanufacturing is made up of unique engines that offer value performance for your next repower. Based on our
popular MerCruiser products, these are fully remanufactured engines that are fitted with marine‑grade performance valve train, pistons, induction
system and (in some cases) marine headers to deliver factory reliability at an affordable price.
Each PLUS‑SERIES engine is "Hot Tested" by supplying fuel and coolant so technicians can perform a series of live‑running tests for quality assurance.
All PLUS‑SERIES engines are completely remanufactured and include exhaust manifolds, fuel, electrical and ignition systems so they are ready to rig
into a boat.
PLUS‑SERIES engines from Mercury Remanufacturing come with a One‑Year Factory Limited Warranty. Mercury Product Protection is available to
provide up to two‑years of additional coverage.
Adapting Plus Series engines to specific applications may require some parts to be transferred from the engines coming out of the boat or purchased
separately. Examples include:

• Transfer of flywheel housings, couplers, and other hardware to adapt to various makes of drives and transoms
• Changing engine couplers to match specific transmissions, or customer preferences
• Changing engine mounts from front to side, or using solid engine mounts
• Use of various Quicksilver kits to meet customer preferences or the specified installation requirements found in the Repower Reference Manual
included with the engine

4.3L ALPHA 4V - ENGINE ONLY 350 MPI ALPHA - ENGINE ONLY

4.3L ALPHA 4V GEN+ - ENGINE ONLY 350 MPI ALPHA - ENGINE ONLY MERCRUISER

865108R89 863611R11
4.3L Alpha 4V Sterndrive Engine Only. 225 HP @ 4800 RPM, 4.3L Liter Fully 350 MPI Alpha Sterndrive Engine Only. 300 HP @ 5000 RPM, 350 Cubic Inch
Dressed Marine Engine. Engine Features: Special Flame Graphics, New 600 cfm Fully Dressed Marine Engine. Engine Features: Special Flame Graphics,
4bbl Carburetor, Electric Fuel Pump, 2‑piece Wet Joint Exhaust, Nodular Iron Multi‑Port Fuel Injection Using Cool Fuel II, Dry Joint Exhaust, Nodular Iron
Crankshaft, Billet Steel Roller Camshaft, Vortec Cast Iron Cylinder Heads, Crankshaft, Roller Camshaft, Vortec Cast Iron Cylinder Heads, Stainless Steel
Stainless Steel Valves, 9.4:1 Hypereutectic Pistons, 1.5:1 Full Roller Rocker Arms, Valves, 9.4:1 Htpereutectic Pistons. It uses ECM 555 with Engine Guardian and is
Thunderbolt V Ignition with Knock Control, 10‑Pin Harness. Runs on 87 Octane SmartCraft ready, 10‑Pin Harness. Runs on 87 Octane Fuel.
Fuel. NOTE: If used with an Alpha One (GEN I) drive, this engine requires a Seawater
pump kit 46‑8M0139983 & serpentine belt 57‑865615Q03 (sold separately) for
proper cooling.
300 HP Remanufactured Sterndrive Engine.
225 HP Remanufactured Sterndrive Engine Replaces 5.0L, 5.0L EFI/MPI, 5.7L, 5.7L EFI/MPI and 350 Mag MPI sterndrive
Replaces MerCruiser 4.3L & 5.0L sterndrive engines. engines.
