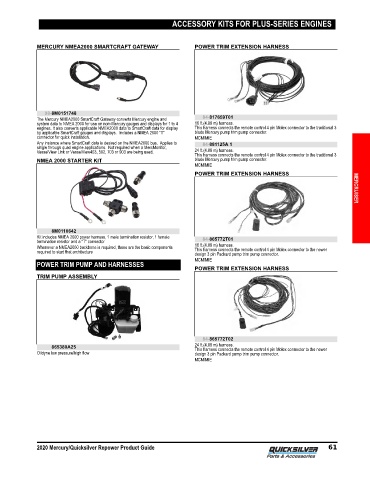

Page 78 - Repower Reference Guide (2020) 8M0149179

ACCESSORY KITS FOR PLUS-SERIES ENGINES

MERCURY NMEA2000 SMARTCRAFT GATEWAY POWER TRIM EXTENSION HARNESS

98-8M0151748
The Mercury NMEA2000 SmartCraft Gateway converts Mercury engine and 84-817659T01
system data to NMEA 2000 for use on non‑Mercury gauges and displays for 1 to 4 16 ft.(4.88 m) harness.
engines. It also converts applicable NMEA2000 data to SmartCraft data for display This harness connects the remote control 4 pin Molex connector to the traditional 3
by applicable SmartCraft gauges and displays. Includes a NMEA 2000 "T" blade Mercury pump trim pump connector.
connector for quick installation. MCM/MIE
Any instance where SmartCraft data is desired on the NMEA2000 bus. Applies to 84-881125A 1
single through quad engine applications. Not required when a MercMonitor,
VesselView Link or VesselView403, 502, 703 or 903 are being used. 24 ft.(4.88 m) harness.
This harness connects the remote control 4 pin Molex connector to the traditional 3
NMEA 2000 STARTER KIT blade Mercury pump trim pump connector.
MCM/MIE
POWER TRIM EXTENSION HARNESS MERCRUISER

8M0110642
Kit includes NMEA 2000 power harness, 1 male termination resistor, 1 female 84-865772T01
termination resistor and a "T" connector
Whenever a NMEA2000 backbone is required, these are the basic components 16 ft.(4.88 m) harness.
This harness connects the remote control 4 pin Molex connector to the newer
required to start that architecture
design 3 pin Packard pump trim pump connector.
MCM/MIE
POWER TRIM PUMP AND HARNESSES
POWER TRIM EXTENSION HARNESS
TRIM PUMP ASSEMBLY

84-865772T02
865380A25 24 ft.(4.88 m) harness.
This harness connects the remote control 4 pin Molex connector to the newer
Oildyne low pressure/high flow design 3 pin Packard pump trim pump connector.
MCM/MIE

2020 Mercury/Quicksilver Repower Product Guide 61
