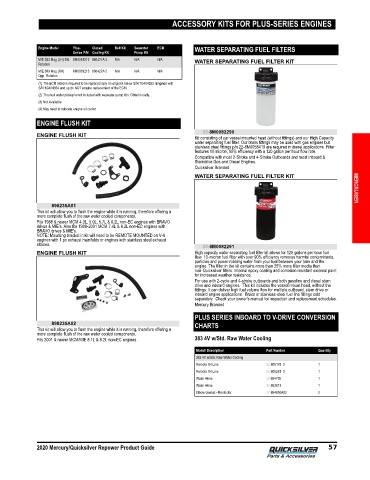

Page 74 - Repower Reference Guide (2020) 8M0149179

ACCESSORY KITS FOR PLUS-SERIES ENGINES

Engine Model Plus- Closed Belt Kit Seawater ECM WATER SEPARATING FUEL FILTERS
Series P/N Cooling Kit Pump Kit
MIE 383 Mag (LH) Std. 8M0061212 860427A 5 N/A N/A N/A WATER SEPARATING FUEL FILTER KIT
Rotation
MIE 383 Mag (RH) 8M0061213 860427A 5 N/A N/A N/A
Opp. Rotation
(1) The ECM listed is required to be replaced only on engines below S/N 1G404353. Engines with
S/N 1G404354 and up do NOT require replacement of the ECM.
(2) Thru hull water pickup is not included with seawater pump kits. Obtain locally.
(3) Not Available
(4) May need to relocate enigne oil cooler
ENGINE FLUSH KIT

35-8M0082290
ENGINE FLUSH KIT
Kit consisting of our vessel mounted head (without fittings) and our High Capacity
water separating fuel filter. Our brass fittings may be used with gas engines but
stainless steel fittings p/n 22‑8M0058419 are required in diesel applications. Filter
features 10 micron, 90% efficiency with a 120 gallon per hour flow rate.
Compatible with most 2‑Stroke and 4‑Stroke Outboards and most Inboard &
Sterndrive Gas and Diesel Engines.
Quicksilver Branded
WATER SEPARATING FUEL FILTER KIT MERCRUISER

898235A01
This kit will allow you to flush the engine while it is running, therefore offering a
more complete flush of the raw water cooled components.
Fits 1988 & newer MCM 4.3L, 5.0L, 5.7L & 6.2L non‑EC engines with BRAVO
drives & MIE's. Also fits 1988‑2001 MCM 7.4L & 8.2L non‑EC engines with
BRAVO drives & MIE's.
NOTE: Mounting bracket in kit will need to be REMOTE MOUNTED on V‑6
engines with 1 pc exhaust manifolds or engines with stainless steel exhaust
elbows. 35-8M0082291
ENGINE FLUSH KIT High capacity water separating fuel filter kit allows for 120 gallons per hour fuel
flow. 10‑micron fuel filter with over 90% efficiency removes harmful contaminants,
particles and power robbing water from your fuel between your tank and the
engine. The filter in the kit contains more than 25% more filter media than
non‑Quicksilver filters. Internal epoxy coating and corrosion resistant external paint
for increased weather resistance.
For use with 2‑cycle and 4‑stroke outboards and both gasoline and diesel stern
drive and inboard engines. This kit includes the vessel mount head, without the
fittings. It can deliver high fuel volume flow for multiple outboard, stern drive or
inboard engine applications. Brass or stainless‑steel fuel line fittings sold
separately. Check your owner’s manual for inspection and replacement schedules.
Mercury Branded
PLUS SERIES INBOARD TO V-DRIVE CONVERSION
898235A02 CHARTS
This kit will allow you to flush the engine while it is running, therefore offering a
more complete flush of the raw water cooled components.
Fits 2001 & newer MCM/MIE 8.1L & 8.2L non‑EC engines. 383 4V w/Std. Raw Water Cooling
Model/ Description Part Number Quantity
383 4V w/Std. Raw Water Cooling
Remote Oil Line 32-806178 3 1
Remote Oil Line 32-806261 3 1
Water Hose 32-864705 1
Water Hose 32-863813 1
Elbow Gasket - Restrictor 27-864850A02 2

2020 Mercury/Quicksilver Repower Product Guide 57
