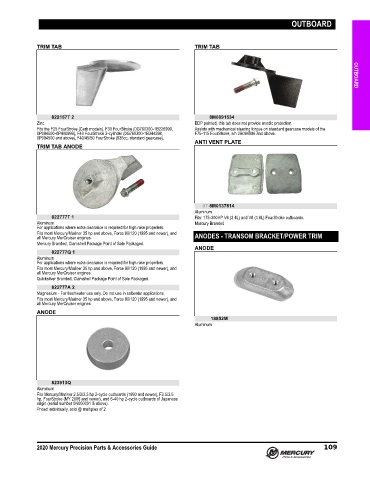

Page 118 - Latin America Accessories Guide (2020) - 8M0163252

OUTBOARD

TRIM TAB TRIM TAB OUTBOARD

822157T 2 8M0091534
Zinc EDP painted, this tab does not provide anodic protection.
Fits the F25 FourStroke (Carb models), F30 FourStroke (0G760300‑1B226999, Assists with mechanical steering torgue on standard gearcase models of the
0P094500‑0P400999), F40 FourStroke 3‑cylinder (0G760300‑1B344398, F75‑115 FourStroke, s/n 2B094996 and above.
0P094500 and above), F40/45/50 FourStroke (935cc, standard gearcase).
ANTI VENT PLATE
TRIM TAB ANODE

97-8M0137814
Aluminum
822777T 1 Fits: 175‑300HP V6 (3.4L) and V8 (4.6L) FourStroke outboards.
Aluminum Mercury Branded
For applications where extra clearance is required for high rake propellers.
Fits most Mercury/Mariner 35 hp and above, Force 90/120 (1995 and newer), and
all Mercury MerCruiser engines. ANODES - TRANSOM BRACKET/POWER TRIM
Mercury Branded, Clamshell Package Point of Sale Packaged.
ANODE
822777Q 1
Aluminum
For applications where extra clearance is required for high rake propellers.
Fits most Mercury/Mariner 35 hp and above, Force 90/120 (1995 and newer), and
all Mercury MerCruiser engines.
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
822777A 2
Magnesium ‑ For freshwater use only. Do not use in saltwater applications.
Fits most Mercury/Mariner 35 hp and above, Force 90/120 (1995 and newer), and
all Mercury MerCruiser engines.
ANODE
18852M
Aluminum

823913Q
Aluminum
Fits Mercury/Mariner 2.5/3/3.3 hp 2‑cycle outboards (1990 and newer), F2.5/3.5
hp. FourStroke (MY 2006 and newer), and 6‑40 hp 2‑cycle outboards of Japanese
origin (serial number 0N000001 & above).
Priced individually, sold @ multiples of 2

2020 Mercury Precision Parts & Accessories Guide 109
