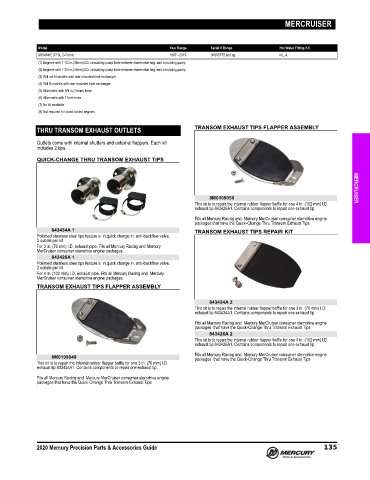

Page 144 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

Model Year Range Serial # Range Hot Water Fitting Kit
MCM/MIE D7.3L D-Tronic 1997 - 2019 0K095775 and up N.L.A.
(1) Engines with 1-1/2 in.(38mm) I.D. circulating pump hose between thermostat hsg. and circulating pump
(2) Engines with 1-3/4 in.(45mm) I.D. circulating pump hose between thermostat hsg. and circulating pump
(3) Will not fit models with rear mounted heat exchanger
(4) Will fit models with rear mounted heat exchanger
(5) All models with 5/8 in.(16mm) hose
(6) All models with 17mm hose
(7) No kit available
(8) Not required for closd cooled engines

THRU TRANSOM EXHAUST OUTLETS TRANSOM EXHAUST TIPS FLAPPER ASSEMBLY

Outlets come with internal shutters and external flappers. Each kit
includes 2 tips.
QUICK-CHANGE THRU TRANSOM EXHAUST TIPS

8M0109050 MERCRUISER
This kit is to repair the internal rubber flapper baffle for one 4 in. (102 mm) I.D.
exhaust tip 843426A1. Contains components to repair one exhaust tip.
Fits all Mercury Racing and Mercury MerCruiser consumer sterndrive engine
packages that have the Quick‑Change Thru Transom Exhaust Tips.
843434A 1 TRANSOM EXHAUST TIPS REPAIR KIT
Polished stainless steel tips feature a in.quick change in. anti‑backflow valve.
2 outlets per kit.
For 3 in. (76 mm) I.D. exhaust pipe. Fits all Mercury Racing and Mercury
MerCruiser consumer sterndrive engine packages.
843426A 1
Polished stainless steel tips feature a in.quick change in. anti‑backflow valve.
2 outlets per kit.
For 4 in. (102 mm) I.D. exhaust pipe. Fits all Mercury Racing and Mercury
MerCruiser consumer sterndrive engine packages.
TRANSOM EXHAUST TIPS FLAPPER ASSEMBLY

843434A 2
This kit is to repair the internal rubber flapper baffle for one 3 in. (76 mm) I.D.
exhaust tip 843434A1. Contains components to repair one exhaust tip.
Fits all Mercury Racing and Mercury MerCruiser consumer sterndrive engine
packages that have the Quick‑Change Thru Transom Exhaust Tips
843426A 2
This kit is to repair the internal rubber flapper baffle for one 4 in. (102 mm) I.D.
exhaust tip 843426A1. Contains components to repair one exhaust tip.
Fits all Mercury Racing and Mercury MerCruiser consumer sterndrive engine
8M0109049 packages that have the Quick‑Change Thru Transom Exhaust Tips
This kit is to repair the internal rubber flapper baffle for one 3 in. (76 mm) I.D.
exhaust tip 843434A1. Contains components to repair one exhaust tip.
Fits all Mercury Racing and Mercury MerCruiser consumer sterndrive engine
packages that have the Quick‑Change Thru Transom Exhaust Tips

2020 Mercury Precision Parts & Accessories Guide 135
