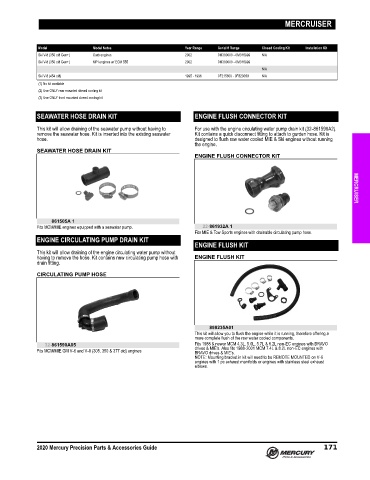

Page 180 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

Model Model Notes Year Range Serial # Range Closed Cooling Kit Installation Kit
Ski V-8 (350 cid Gen+) Carb engines 2002 0M300000 - 0M316999 N/A
Ski V-8 (350 cid Gen+) MPI engines w/ ECM 555 2002 0M300000 - 0M316999
N/A
Ski V-8 (454 cid) 1995 - 1996 0F215800 - 0F820099 N/A
(1) No kit available
(2) Use ONLY rear mounted closed cooling kit
(3) Use ONLY front mounted closed cooling kit

SEAWATER HOSE DRAIN KIT ENGINE FLUSH CONNECTOR KIT

This kit will allow draining of the seawater pump without having to For use with the engine circulating water pump drain kit (32‑861590A2).
remove the seawater hose. Kit is inserted into the existing seawater Kit contains a quick disconnect fitting to attach to garden hose. Kit is
hose. designed to flush raw water cooled MIE & Ski engines without running
the engine.
SEAWATER HOSE DRAIN KIT
ENGINE FLUSH CONNECTOR KIT

861505A 1 MERCRUISER
Fits MCM/MIE engines equipped with a seawater pump. 22-861932A 1
Fits MIE & Tow Sports engines with drainable circulating pump hose.
ENGINE CIRCULATING PUMP DRAIN KIT
ENGINE FLUSH KIT
This kit will allow draining of the engine circulating water pump without
having to remove the hose. Kit contains new circulating pump hose with ENGINE FLUSH KIT
drain fitting.
CIRCULATING PUMP HOSE

898235A01
This kit will allow you to flush the engine while it is running, therefore offering a
more complete flush of the raw water cooled components.
32-861590A05 Fits 1988 & newer MCM 4.3L, 5.0L, 5.7L & 6.2L non‑EC engines with BRAVO
Fits MCM/MIE GM V‑6 and V‑8 (305, 350 & 377 cid) engines drives & MIE's. Also fits 1988‑2001 MCM 7.4L & 8.2L non‑EC engines with
BRAVO drives & MIE's.
NOTE: Mounting bracket in kit will need to be REMOTE MOUNTED on V‑6
engines with 1 pc exhaust manifolds or engines with stainless steel exhaust
elbows.

2020 Mercury Precision Parts & Accessories Guide 171
