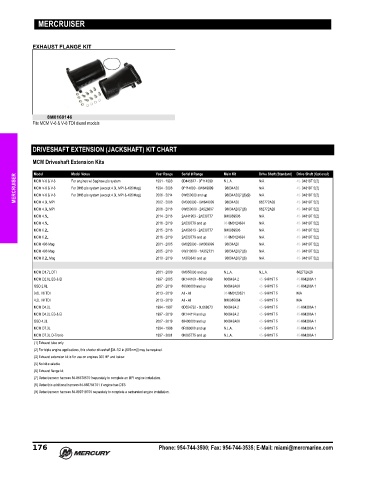

Page 185 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

EXHAUST FLANGE KIT

8M0160146
Fits MCM V‑6 & V‑8 TDI diesel models

DRIVESHAFT EXTENSION (JACKSHAFT) KIT CHART

MCM Driveshaft Extension Kits Year Range Serial # Range Main Kit Drive Shaft (Standard) Drive Shaft (Optional)
Model
Model Notes
MERCRUISER MCM V-6 & V-8 For engines w/ Saginaw p/s system 1991 - 1993 0D445877 - 0F114599 N.L.A. N/A 45- 94819T 5(2)
MCM V-6 & V-8
45- 94819T 5(2)
For DHB p/s system (except 4.3L MPI & 496 Mag)
1994 - 2006
0F114600 - 0W649999
N/A
98634A20
For DHB p/s system (except 4.3L MPI & 496 Mag)
45- 94819T 5(2)
2006 - 2014
0W650000 and up
N/A
MCM V-6 & V-8
98634A20(7)(8)(9)
MCM 4.3L MPI
0W650000 - 2A528897
98634A20(7)(8)
862772A28
MCM 4.3L MPI 2002 - 2006 0M300000 - 0W649999 98634A20 862772A28 45- 94819T 5(2)
45- 94819T 5(2)
2006 - 2016
MCM 4.5L 2014 - 2016 2A441953 - 2A530777 8M0089506 N/A 45- 94819T 5(2)
MCM 4.5L 2016 - 2019 2A530778 and up 98-8M0124634 N/A 45- 94819T 5(2)
MCM 6.2L 2015 - 2016 2A456613 - 2A530777 8M0089506 N/A 45- 94819T 5(2)
MCM 6.2L 2016 - 2019 2A530778 and up 98-8M0124634 N/A 45- 94819T 5(2)
MCM 496 Mag 2001 - 2005 0M025000 - 0W309999 98634A20 N/A 45- 94819T 5(2)
MCM 496 Mag 2005 - 2010 0W310000 - 1A352731 98634A20(7)(8) N/A 45- 94819T 5(2)
MCM 8.2L Mag 2010 - 2019 1A350340 and up 98634A20(7)(8) N/A 45- 94819T 5(2)

MCM D1.7L DTI 2001 - 2009 0M055000 and up N.L.A. N.L.A. 862772A28
MCM D2.8L ES & EI 1997 - 2005 0K144109 - 88010499 806843A 2 45- 94819T 5 45-864286A 1
QSD 2.8L 2007 - 2019 88300000 and up 806843A06 45- 94819T 5 45-864286A 1
3.0L V6 TDI 2013 - 2019 All - All 98-8M0120321 45- 94819T 5 N/A
4.2L V8 TDI 2013 - 2019 All - All 8M0085664 45- 94819T 5 N/A
MCM D4.2L 1994 - 1997 0D554732 - 0L668673 806843A 2 45- 94819T 5 45-864286A 1
MCM D4.2L ES & EI 1997 - 2019 0K144114 and up 806843A 2 45- 94819T 5 45-864286A 1
QSD 4.2L 2007 - 2019 88400000 and up 806843A06 45- 94819T 5 45-864286A 1
MCM D7.3L 1994 - 1996 0F060000 and up N.L.A. 45- 94819T 5 45-864286A 1
MCM D7.3L D-Tronic 1997 - 2001 0K095775 and up N.L.A. 45- 94819T 5 45-864286A 1
(1) Exhaust tube only
(2) For triple engine applications, this shorter driveshaft [34-1/2 in.(876mm)] may be required.
(3) Exhaust extension kit is for use on engines 300 HP and below.
(5) No kit available
(6) Exhaust flange kit
(7) Order transom harness 84-866785T01separately to complete an MPI engine installation.
(8) Order this additional harness 84-866784T01 if engine has DTS
(9) Order transom harness 84-899719T05 separately to complete a carburated engine installation.
