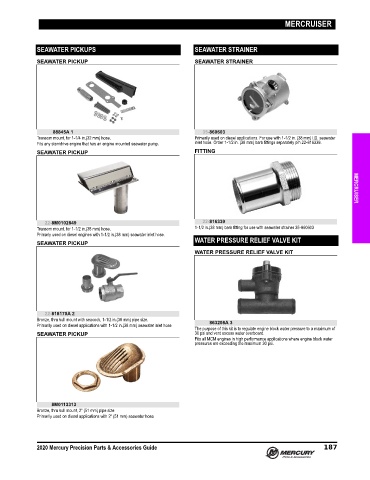

Page 196 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

SEAWATER PICKUPS SEAWATER STRAINER

SEAWATER PICKUP SEAWATER STRAINER

88845A 1 35-860603
Transom mount, for 1‑1/4 in.(32 mm) hose. Primarily used on diesel applications. For use with 1‑1/2 in. (38 mm) I.D. seawater
Fits any sterndrive engine that has an engine mounted seawater pump. inlet hose. Order 1‑1/2 in. (38 mm) barb fittings separately p/n 22‑816339.
SEAWATER PICKUP FITTING

22-8M0102849 22-816339 MERCRUISER
Transom mount, for 1‑1/2 in.(38 mm) hose. 1‑1/2 in.(38 mm) barb fitting for use with seawater strainer 35‑860603
Primarly used on diesel engines with 1‑1/2 in.(38 mm) seawater inlet hose.
SEAWATER PICKUP WATER PRESSURE RELIEF VALVE KIT
WATER PRESSURE RELIEF VALVE KIT

22-818170A 2
Bronze, thru hull mount with seacock, 1‑1/2 in.(38 mm) pipe size.
Primarily used on diesel applications with 1‑1/2 in.(38 mm) seawater inlet hose 863208A 3
The purpose of this kit is to regulate engine block water pressure to a maximum of
SEAWATER PICKUP 30 psi and vent excess water overboard.
Fits all MCM engines in high performance applications where engine block water
pressures are exceeding the maximum 30 psi.

8M0113313
Bronze, thru hull mount, 2" (51 mm) pipe size
Primarily used on diesel applications with 2" (51 mm) seawater hose

2020 Mercury Precision Parts & Accessories Guide 187
