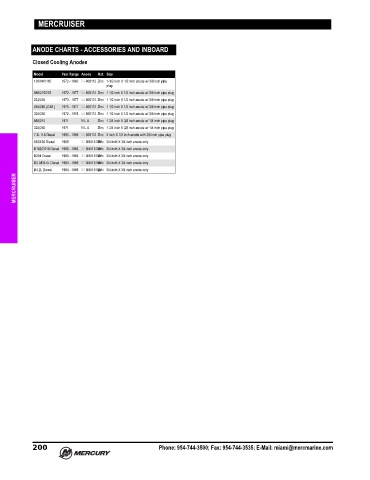

Page 209 - Latin America Accessories Guide (2020) - 8M0163252

MERCRUISER

ANODE CHARTS - ACCESSORIES AND INBOARD

Closed Cooling Anodes

Model Year Range Anode Mat. Size
120/140/165 1972 - 1982 54-808112 Zinc 1-1/2 inch X 1/2 inch anode w/ 3/8 inch pipe
plug
888/215/225 1972 - 1977 54-808112 Zinc 1 1/2 inch X 1/2 inch anode w/ 3/8 inch pipe plug
233/255 1973 - 1977 54-808112 Zinc 1 1/2 inch X 1/2 inch anode w/ 3/8 inch pipe plug
255/280 (G.M.) 1975 - 1977 54-808112 Zinc 1 1/2 inch X 1/2 inch anode w/ 3/8 inch pipe plug
325/350 1972 - 1976 54-808112 Zinc 1 1/2 inch X 1/2 inch anode w/ 3/8 inch pipe plug
888/215 1971 N.L.A. Zinc 1 3/4 inch X 3/8 inch anode w/ 1/4 inch pipe plug
325/350 1971 N.L.A. Zinc 1 3/4 inch X 3/8 inch anode w/ 1/4 inch pipe plug
7.3L V-8 Diesel 1993 - 1995 54-808112 Zinc 2 inch X 1/2 inch anode with 3/8 inch pipe plug
530/636 Diesel 1989 97-8M0151541Zinc 3/4 inch X 3/4 inch anode only
D183/D219 Diesel 1990 - 1993 97-8M0151541Zinc 3/4 inch X 3/4 inch anode only
D254 Diesel 1990 - 1993 97-8M0151541Zinc 3/4 inch X 3/4 inch anode only
D3.0/D3.6L Diesel 1994 - 1995 97-8M0151541Zinc 3/4 inch X 3/4 inch anode only
D4.2L Diesel 1994 - 1995 97-8M0151541Zinc 3/4 inch X 3/4 inch anode only
MERCRUISER

200 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
