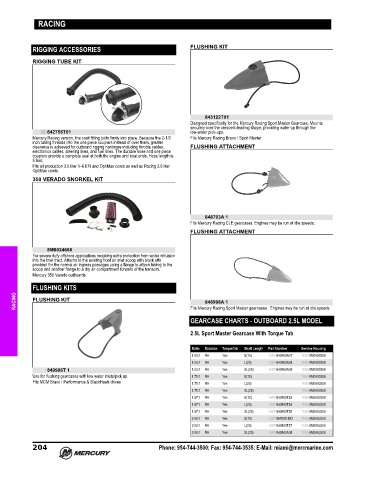

Page 213 - Latin America Accessories Guide (2020) - 8M0163252

RACING

RIGGING ACCESSORIES FLUSHING KIT

RIGGING TUBE KIT

843122T01
Designed specifically for the Mercury Racing Sport Master Gearcase. Mounts
securely over the crescent‑leading shape, providing water up through the
32-842756T01 low‑water pick‑ups.
Mercury Racing version, the cowl fitting bolts firmly into place. Because the 2‑1/2 Fits Mercury Racing Bravo I Sport Master
inch tubing threads into the one piece couplers instead of over them, greater
clearance is achieved for outboard rigging hardware including throttle cables, FLUSHING ATTACHMENT
electronics cables, steering lines, and fuel lines. The durable hose and one piece
couplers provide a complete seal at both the engine and boat ends. Hose length is
5 feet.
Fits all production 3.0 liter V‑6 EFI and OptiMax cowls as well as Racing 3.0 liter
OptiMax cowls.
350 VERADO SNORKEL KIT

848703A 1
Fits Mercury Racing CLE gearcases. Engines may be run at idle speeds.
FLUSHING ATTACHMENT

8M8024668
For severe duty offshore applications requiring extra protection from water intrusion
into the inlet tract. Attachs to the existing front air inlet scoop with block offs
provided for the normal air ingress passages using a flange to attach tubing to the
scoop and another flange to a dry air compartment forward of the transom.
Mercury 350 Verado outboards
FLUSHING KITS
RACING FLUSHING KIT Fits Mercury Racing Sport Master gearcases. Engines may be run at idle speeds.
848998A 1

GEARCASE CHARTS - OUTBOARD 2.5L MODEL

2.5L Sport Master Gearcase With Torque Tab

Ratio Rotation TorqueTab Shaft Length Part Number Service Housing
1.62:1 RH Yes S(15) 1687-840560A27 1600-8M0083306
1.62:1 RH Yes L(20) 1687-840560A28 1600-8M0083306
849996T 1 1.62:1 RH Yes XL(25) 1687-840560A29 1600-8M0083306
Use for flushing gearcases with low water inlets/pick up. 1.75:1 RH Yes S(15) 1600-8M0083306
Fits MCM Bravo I Performance & BlackHawk drives 1.75:1 RH Yes L(20) 1600-8M0083306
1.75:1 RH Yes XL(25) 1600-8M0083306
1.87:1 RH Yes S(15) 1687-840560T33 1600-8M0083306
1.87:1 RH Yes L(20) 1687-840560T34 1600-8M0083306
1.87:1 RH Yes XL(25) 1687-840560T35 1600-8M0083306
2.00:1 RH Yes S(15) 1687-8M0081852 1600-8M0083306
2.00:1 RH Yes L(20) 1687-840560T37 1600-8M0083306
2.00:1 RH Yes XL(25) 1687-840560A38 1600-8M0083306
204 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
