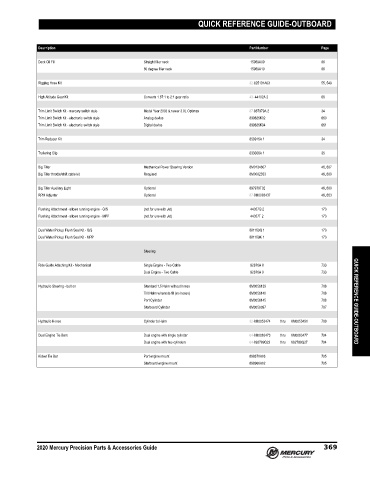

Page 378 - Latin America Accessories Guide (2020) - 8M0163252

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Deck Oil Fill Straight filler neck 15969A09 96
80 degree filler neck 15969A10 96

Rigging Hose Kit 32-825191A03 55, 549

High Altitude Gear Kit Converts 1.87:1 to 2:1 gear ratio 43- 44102A 2 66

Trim Limit Switch Kit - mercury switch style Model Year 2003 & newer 3.0L Optimax 87-887979A 2 34
Trim Limit Switch Kit - electronic switch style Analog device 899625K02 660
Trim Limit Switch Kit - electronic switch style Digital device 899625K04 661

Trim Reducer Kit 858915A 1 34

Trailering Clip 833006A 1 35

Big Tiller Mechanical Power Steering Version 8M0134607 46, 687
Big Tiller throttle/shift cable kit Required 8M0082353 48, 689

Big Tiller Auxiliary Light Optional 897978T02 48, 689
RPM Adjuster Optional 87-8M0083437 48, 663

Flushing Attachment - allows running engine - Q/S (not for use with Jet) 44357Q 2 173
Flushing Attachment - allows running engine - MPP (not for use with Jet) 44357T 2 173

Dual Water Pickup Flush Seal Kit - Q/S 881150Q 1 173
Dual Water Pickup Flush Seal Kit - MPP 881150K 1 173

Steering

Ride Guide Attaching Kit - Mechanical Single Engine - Two Cable 92876A 8 733
Dual Engine - Two Cable 92876A 9 733

Hydraulic Steering - bolt on Standard 1.5 Helm without hoses 8M0056139 708
Tilit Helm w/remote fill (no hoses) 8M0056140 708
Port Cylinder 8M0056145 708 QUICK REFERENCE GUIDE-OUTBOARD
Starboard Cylinder 8M0050097 707

Hydraulic Hoses Cylinder to Helm 32-8M0053474 thru 8M0053491 709

Dual Engine Tie Bars Dual engine with single cylinder 64-8M0063473 thru 8M0063477 704
Dual engine with two cylinders 64-892789Q22 thru 892789Q27 704

Kicker Tie Bar Port engine mount 898370A03 705
Starboard engine mount 898966A02 705

2020 Mercury Precision Parts & Accessories Guide 369
