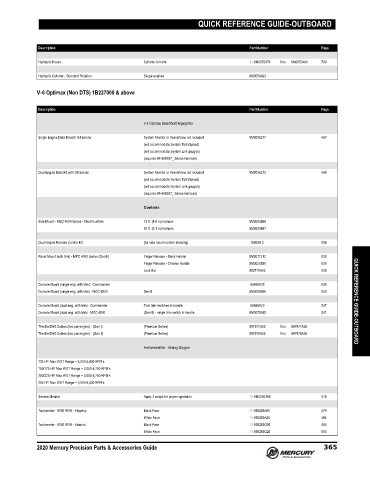

Page 374 - Latin America Accessories Guide (2020) - 8M0163252

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Hydraulic Hoses Cylinder to helm 32-8M0053474 thru 8M0053491 709

Hydraulic Cylinder - Standard Rotation Single engines 8M0054993

V‑6 Optimax (Non DTS) 1B227000 & above

Description Part Number Page

V-6 Optimax SmartCraft Riging Kits

Single Engine Data Kit with Oil Sender System Monitor or VesselView not included 8M0056277 467
(will accommodate System Tach/Speed)
(will accommodate System Link gauges)
(requires 84-896537_ Series Harness)

Dual Engine Data Kit with Oil Sender System Monitor or VesselView not included 8M0056279 468
(will accommodate System Tach/Speed)
(will accommodate System Link gauges)
(requires 84-896537_ Series Harness)

Controls

Side Mount - MSC 4000 Series - Electric w/trim 15 ft. (4.6 m) harness 8M0083666
20 ft. (6.1 m) harness 8M0083667

Dual Engine Remote Control Kit (for side mount control stacking) 16909A 2 536

Panel Mount (with trim) - MPC 4000 Series (Gen II) Finger Release - Black Handle 8M0011213 528
Finger Release - Chrome Handle 8M0030550 528
Lock Bar 883710A02 529

Console Mount (single eng. with trim) - Commander 88688A25 536
Console Mount (single eng. with trim) - MCC 4500 Gen II 8M0059686 530
QUICK REFERENCE GUIDE-OUTBOARD
Console Mount (dual eng. with trim) - Commander Twin trim switches in handle 88688A22 537
Console Mount (dual eng. with trim) - MCC 4500 (Gen II) - single trim switch in handle 8M0075245 531

Throttle/Shift Cables (two per engine) - (Gen I) (Premium Series) 897977A03 thru 897977A50
Throttle/Shift Cables (two per engine) - (Gen II) (Premium Series) 897978A03 thru 897978A50

Instrumentation - Analog Gauges

135 HP. Max WOT Range = 5,000-5,600 RPM's
150/175 HP. Max WOT Range = 5,250-5,750 RPM's
200/225 HP. Max WOT Range = 5,000-5,750 RPM's
250 HP. Max WOT Range = 5,500-6,000 RPM's

Service Monitor Apply 3 wraps for proper operation 79-8M0050399 518

Tachometer - 8000 RPM - Flagship Black Face 79-895283A06 479
White Face 79-895283A26 484
Tachometer - 8000 RPM - Admiral Black Face 79-895283Q06 493
White Face 79-895283Q26 500

2020 Mercury Precision Parts & Accessories Guide 365
