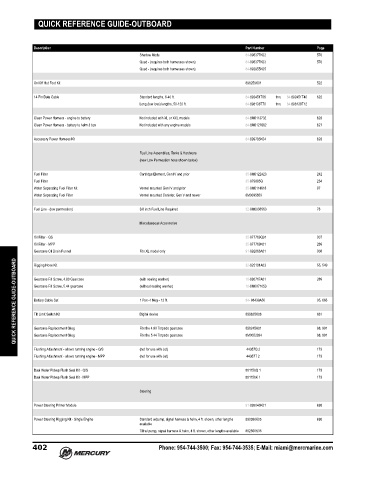

Page 411 - Latin America Accessories Guide (2020) - 8M0163252

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page
Shadow Mode 84-896377K02 576
Quad - (requires both harnesses shown) 84-896377K03 576
Quad - (requires both harnesses shown) 84-892955K05

On/Off Hot Foot Kit 898259K01 522

14 Pin Data Cable Standard lengths, 6-40 ft. 84-892451T06 thru 84-892451T40 622
Long (low loss) lengths, 50-120 ft. 84-898138T70 thru 84-898138T12

Clean Power Harness - engine to battery Not included wtih XL or XXL models 84-8M0113732 628
Clean Power Harness - battery to helm J box Not included with any engine models 84-8M0127682 627

Accessory Power Harness Kit 84-899785K04 628

Fuel Line Assemblies, Tanks & Hardware
(new Low Permeation hose shown below)

Fuel Filter Cartridge Element, Gen IV and prior 35-8M0122423 242
Fuel Filter 35-879885Q 234
Water Separating Fuel Filter Kit Vessel mounted Gen IV and prior 35-8M0114618 87
Water Separating Fuel Filter Vessel mounted Canister, Gen V and newer 8M0095659

Fuel Line - (low permeation) 3/8 inch Fuel Line Required 32-8M0038563 78

Miscellaneous Accessories

Oil Filter - QS 35-877769Q01 307
Oil Filter - MPP 35-877769K01 269
Gearcase Oil Drain Funnel Fits XL model only 91-892866A01 308
Rigging Hose Kit (with sealing washer) 32-825191A03 55, 549
QUICK REFERENCE GUIDE-OUTBOARD Gearcase Fill Screw, 5.44 gearcase (without sealing washer) 10-8M0071653 35, 665

289
Gearcase Fill Screw, 4.80 Gearcase
10-880717A01

1 Pos -1 Neg - 12 ft.
Battery Cable Set
84- 88439A50

Digital device
661
899625K06
Tilt Limit Switch Kit

Gearcase Replacement Skeg
Fits the 5.44 Torpedo gearcase
98, 991
8M0052924
Gearcase Replacement Skeg

173
44357Q 2
(not for use with Jet)
Flushing Attachment - allows running engine - Q/S Fits the 4.80 Torpedo gearcase 898245A01 98, 991
Flushing Attachment - allows running engine - MPP (not for use with Jet) 44357T 2 173

Dual Water Pickup Flush Seal Kit - Q/S 881150Q 1 173
Dual Water Pickup Flush Seal Kit - MPP 881150K 1 173

Steering

Power Steering Primer Module 91-895040K01 698

Power Steering Rigging Kit - Single Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths 892380K05 690
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892560K35
402 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
