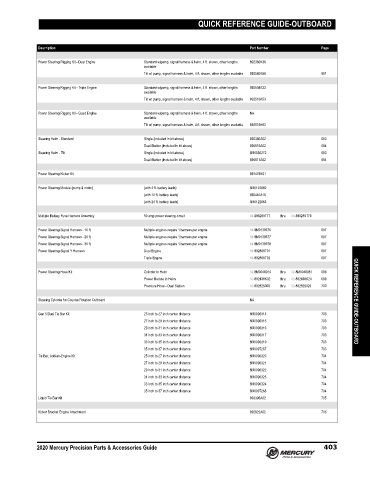

Page 412 - Latin America Accessories Guide (2020) - 8M0163252

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Power Steering Rigging Kit - Dual Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths 892380K36
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892560K56 691

Power Steering Rigging Kit - Triple Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths 892558K33
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892516K53

Power Steering Rigging Kit - Quad Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths NA
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892516K63

Steering Helm - Standard Single (included in kit above) 892380A02 693
Dual Station (included in kit above) 895816A02 694
Steering Helm - Tilt Single (included in kit above) 8M0030272 693
Dual Station (included in kit above) 895817A02 694

Power Steering Kicker Kit 897478K01

Power Steering Module (pump & motor) (with 4 ft. battery leads) 8M0122660
(with 12 ft. battery leads) 892440A18
(with 24 ft. battery leads) 8M0122663

Multiple Battery Fuse Harness Assembly 50 amp power steering circuit 84-898289T77 thru 84-898289T79

Power Steering Signal Harness - 10 ft. Multiple engines require 1 harness per engine 84-8M0138676 697
Power Steering Signal Harness - 20 ft. Multiple engines require 1 harness per engine 84-8M0138677 697
Power Steering Signal Harness - 30 ft. Multiple engines require 1 harness per engine 84-8M0138678 697
Power Steering Signal Y Harness Dual Engine 84-892868T01 697
Triple Engine 84-892868T02 697

Power Steering Hose Kit Cylinder to Helm 32-8M0046914 thru 32-8M0046931 698
Power Module to Helm 32-892438K02 thru 32-892438K24 699
Pressure Hose - Dual Station 32-892825008 thru 32-892825026 700

Steering Cylinder for Counter Rotation Outboard NA QUICK REFERENCE GUIDE-OUTBOARD

Gen 5 Dual Tie Bar Kit 25 inch to 27 inch center distance 8M0096314 703
27 inch to 29 inch center distance 8M0096315 703
29 inch to 31 inch center distance 8M0096316 703
31 inch to 33 inch center distance 8M0096317 703
33 inch to 35 inch center distance 8M0096319 703
35 inch to 37 inch center distance 8M0097267 703
Tie Bar, Add-an-Engine Kit 25 inch to 27 inch center distance 8M0096320 704
27 inch to 29 inch center distance 8M0096321 704
29 inch to 31 inch center distance 8M0096322 704
31 inch to 33 inch center distance 8M0096323 704
33 inch to 35 inch center distance 8M0096324 704
35 inch to 37 inch center distance 8M0097268 704
Liquid Tie Bar Kit 893396A02 705

Kicker Bracket Engine Attachment 892822A02 706

2020 Mercury Precision Parts & Accessories Guide 403
