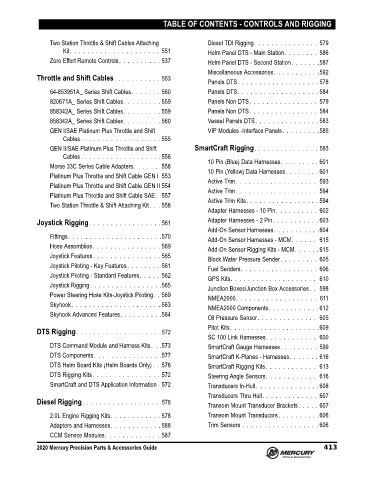

TABLE OF CONTENTS - CONTROLS AND RIGGING

Two Station Throttle & Shift Cables Attaching Diesel TDI Rigging. . . . . . . . . . . . . . . 579
Kit. . . . . . . . . . . . . . . . . . . . . 551 Helm Panel DTS - Main Station. . . . . . . . 586
Zero Effort Remote Controls. . . . . . . . . . 537 Helm Panel DTS - Second Station. . . . . . . 587
Miscellaneous Accessories. . . . . . . . . . . 592
Throttle and Shift Cables. . . . . . . . . . . 553
Panels DTS. . . . . . . . . . . . . . . . . . . 578
64-853951A_ Series Shift Cables. . . . . . . 560 Panels DTS. . . . . . . . . . . . . . . . . . . 584
820671A_ Series Shift Cables. . . . . . . . . 559 Panels Non DTS. . . . . . . . . . . . . . . . 579
858342A_ Series Shift Cables. . . . . . . . . 559 Panels Non DTS. . . . . . . . . . . . . . . . 584
858342A_ Series Shift Cables. . . . . . . . . 560 Vessel Panels DTS. . . . . . . . . . . . . . . 583
GEN I/SAE Platinum Plus Throttle and Shift VIP Modules -Interface Panels. . . . . . . . . 585
Cables. . . . . . . . . . . . . . . . . . . 555
GEN II/SAE Platinum Plus Throttle and Shift SmartCraft Rigging. . . . . . . . . . . . . . . 593
Cables. . . . . . . . . . . . . . . . . . . 556
Morse 33C Series Cable Adapters. . . . . . 558 10 Pin (Blue) Data Harnesses. . . . . . . . . 601
Platinum Plus Throttle and Shift Cable GEN I 553 10 Pin (Yellow) Data Harnesses. . . . . . . . 601
Platinum Plus Throttle and Shift Cable GEN II 554 Active Trim. . . . . . . . . . . . . . . . . . . 593
Platinum Plus Throttle and Shift Cable SAE. 557 Active Trim. . . . . . . . . . . . . . . . . . . 594
Two Station Throttle & Shift Attaching Kit. . . 558 Active Trim Kits. . . . . . . . . . . . . . . . . 594
Adapter Harnesses - 10 Pin. . . . . . . . . . 602
Joystick Rigging. . . . . . . . . . . . . . . . . 561 Adapter Harnesses - 2 Pin. . . . . . . . . . . 603
Add-On Sensor Harnesses. . . . . . . . . . . 604
Fittings. . . . . . . . . . . . . . . . . . . . . . 570 Add-On Sensor Harnesses - MCM. . . . . . 615
Hose Assemblies. . . . . . . . . . . . . . . . 569 Add-On Sensor Rigging Kits - MCM. . . . . . 615
Joystick Features. . . . . . . . . . . . . . . . 565 Block Water Pressure Sender. . . . . . . . . 605
Joystick Piloting - Key Features. . . . . . . . 561 Fuel Senders. . . . . . . . . . . . . . . . . . 606
Joystick Piloting - Standard Features. . . . . 562 GPS Kits. . . . . . . . . . . . . . . . . . . . 610
Joystick Rigging. . . . . . . . . . . . . . . . . 565 Junction Boxes/Junction Box Accessories. . 598
Power Steering Hose Kits-Joystick Piloting. . 569 NMEA2000. . . . . . . . . . . . . . . . . . . 611
Skyhook. . . . . . . . . . . . . . . . . . . . . 563 NMEA2000 Components. . . . . . . . . . . . 612
Skyhook Advanced Features. . . . . . . . . . 564 Oil Pressure Sensor. . . . . . . . . . . . . . 605

Pitot Kits. . . . . . . . . . . . . . . . . . . . . 609
DTS Rigging. . . . . . . . . . . . . . . . . . . . 572
SC 100 Link Harnesses. . . . . . . . . . . . 600
DTS Command Module and Harness Kits. . . 573 SmartCraft Gauge Harnesses. . . . . . . . . 599
DTS Components. . . . . . . . . . . . . . . . 577 SmartCraft K-Planes - Harnesses. . . . . . . 616
DTS Helm Board Kits (Helm Boards Only). . 576 SmartCraft Rigging Kits. . . . . . . . . . . . 613
DTS Rigging Kits. . . . . . . . . . . . . . . . 572 Steering Angle Sensors. . . . . . . . . . . . 616
SmartCraft and DTS Application Information 572 Transducers In-Hull. . . . . . . . . . . . . . . 608

Transducers Thru Hull. . . . . . . . . . . . . 607
Diesel Rigging. . . . . . . . . . . . . . . . . . 578
Transom Mount Transducer Brackets. . . . . 607
2.0L Engine Rigging Kits. . . . . . . . . . . . 578 Transom Mount Transducers. . . . . . . . . . 606
Adapters and Harnesses. . . . . . . . . . . . 588 Trim Sensors . . . . . . . . . . . . . . . . . . 606
CCM Service Modules. . . . . . . . . . . . . 587
