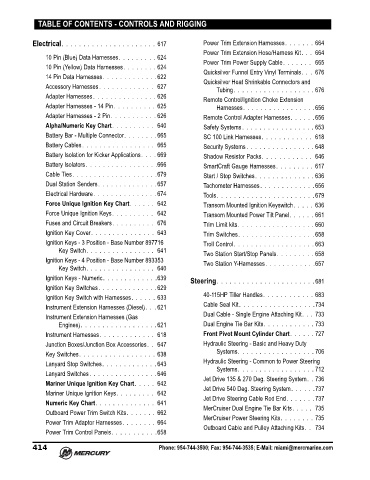

TABLE OF CONTENTS - CONTROLS AND RIGGING

Electrical. . . . . . . . . . . . . . . . . . . . . . 617 Power Trim Extension Harnesses. . . . . . . 664
Power Trim Extension Hose/Harness Kit. . . 664
10 Pin (Blue) Data Harnesses. . . . . . . . . 624
10 Pin (Yellow) Data Harnesses. . . . . . . . 624 Power Trim Power Supply Cable. . . . . . . 665
14 Pin Data Harnesses. . . . . . . . . . . . . 622 Quicksilver Funnel Entry Vinyl Terminals. . . 676
Quicksilver Heat Shrinkable Connectors and
Accessory Harnesses. . . . . . . . . . . . . 627 Tubing. . . . . . . . . . . . . . . . . . . 676
Adapter Harnesses. . . . . . . . . . . . . . . 626 Remote Control/Ignition Choke Extension
Adapter Harnesses - 14 Pin. . . . . . . . . . 625 Harnesses. . . . . . . . . . . . . . . . . 656
Adapter Harnesses - 2 Pin. . . . . . . . . . . 626 Remote Control Adapter Harnesses. . . . . . 656
Alpha/Numeric Key Chart. . . . . . . . . . 640 Safety Systems. . . . . . . . . . . . . . . . . 653
Battery Bar - Multiple Connector. . . . . . . . 665 SC 100 Link Harnesses. . . . . . . . . . . . 618
Battery Cables. . . . . . . . . . . . . . . . . 665 Security Systems. . . . . . . . . . . . . . . . 648
Battery Isolation for Kicker Applications. . . . 669 Shadow Resistor Packs. . . . . . . . . . . . 646
Battery Isolators. . . . . . . . . . . . . . . . . 666 SmartCraft Gauge Harnesses. . . . . . . . . 617
Cable Ties. . . . . . . . . . . . . . . . . . . . 679 Start / Stop Switches. . . . . . . . . . . . . . 636
Dual Station Senders. . . . . . . . . . . . . . 657 Tachometer Harnesses. . . . . . . . . . . . . 656
Electrical Hardware. . . . . . . . . . . . . . . 674 Tools. . . . . . . . . . . . . . . . . . . . . . . 679
Force Unique Ignition Key Chart. . . . . . 642 Transom Mounted Ignition Keyswitch. . . . . 636
Force Unique Ignition Keys. . . . . . . . . . 642 Transom Mounted Power Tilt Panel. . . . . . 661
Fuses and Circuit Breakers. . . . . . . . . . 676 Trim Limit kits. . . . . . . . . . . . . . . . . . 660
Ignition Key Cover. . . . . . . . . . . . . . . 643 Trim Switches. . . . . . . . . . . . . . . . . . 658
Ignition Keys - 3 Position - Base Number 897716 Troll Control. . . . . . . . . . . . . . . . . . . 663
Key Switch. . . . . . . . . . . . . . . . 641 Two Station Start/Stop Panels. . . . . . . . . 658
Ignition Keys - 4 Position - Base Number 893353 Two Station Y-Harnesses. . . . . . . . . . . . 657
Key Switch. . . . . . . . . . . . . . . . 640
Ignition Keys - Numeric. . . . . . . . . . . . . 639 Steering. . . . . . . . . . . . . . . . . . . . . . . 681
Ignition Key Switches. . . . . . . . . . . . . . 629
Ignition Key Switch with Harnesses. . . . . . 633 40-115HP Tiller Handles. . . . . . . . . . . . 683

Instrument Extension Harnesses (Diesel). . . 621 Cable Seal Kit. . . . . . . . . . . . . . . . . . 734
Instrument Extension Harnesses (Gas Dual Cable - Single Engine Attaching Kit. . . 733
Engines). . . . . . . . . . . . . . . . . . 621 Dual Engine Tie Bar Kits. . . . . . . . . . . . 733
Instrument Harnesses. . . . . . . . . . . . . 618 Front Pivot Mount Cylinder Chart. . . . . . 727
Junction Boxes/Junction Box Accessories. . 647 Hydraulic Steering - Basic and Heavy Duty
Key Switches. . . . . . . . . . . . . . . . . . 638 Systems. . . . . . . . . . . . . . . . . . 706
Lanyard Stop Switches. . . . . . . . . . . . . 643 Hydraulic Steering - Common to Power Steering
Lanyard Switches. . . . . . . . . . . . . . . . 646 Systems. . . . . . . . . . . . . . . . . . 712
Mariner Unique Ignition Key Chart. . . . . 642 Jet Drive 135 & 270 Deg. Steering System. . 736
. 737
Mariner Unique Ignition Keys. . . . . . . . . 642 Jet Drive 540 Deg. Steering System. . . . . . . . . . . 737
Jet Drive Steering Cable Rod End.
Numeric Key Chart. . . . . . . . . . . . . . 641 MerCruiser Dual Engine Tie Bar Kits. . . . . 735
Outboard Power Trim Switch Kits. . . . . . . 662 MerCruiser Power Steering Kits. . . . . . . . 735
Power Trim Adaptor Harnesses. . . . . . . . 664 Outboard Cable and Pulley Attaching Kits. . 734
Power Trim Control Panels. . . . . . . . . . . 658

414 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
