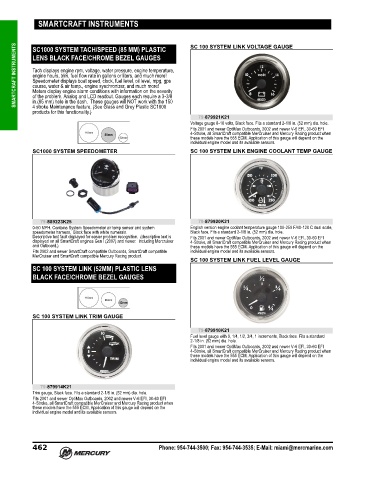

Page 471 - Latin America Accessories Guide (2020) - 8M0163252

SMARTCRAFT INSTRUMENTS SC 100 SYSTEM LINK VOLTAGE GAUGE

SMARTCRAFT INSTRUMENTS SC1000 SYSTEM TACH/SPEED (85 MM) PLASTIC
LENS BLACK FACE/CHROME BEZEL GAUGES

Tach displays engine rpm, voltage, water pressure, engine temperature,
engine hours, trim, fuel flow rate in gallons or liters, and much more!
Speedometer displays boat speed, clock, fuel level, oil level, mpg, gps
course, water & air temp., engine synchronizer, and much more!
Meters display engine alarm conditions with information on the severity
of the problem. Analog and LCD readout. Gauges each require a 3‑3/8
in.(85 mm) hole in the dash. These gauges will NOT work with the 150
4 stroke Maintenance feature. (See Glass and Grey Plastic SC1000
products for this functionality.)
79-879921K21
Voltage gauge 8‑16 volts, Black face. Fits a standard 2‑1/8 in. (52 mm) dia. hole.
Fits 2001 and newer OptiMax Outboards, 2002 and newer V‑6 EFI, 30‑60 EFI
4‑Stroke, all SmartCraft compatible MerCruiser and Mercury Racing product when
these models have the 555 ECM. Application of this gauge will depend on the
individual engine model and its available sensors.
SC1000 SYSTEM SPEEDOMETER SC 100 SYSTEM LINK ENGINE COOLANT TEMP GAUGE

79-889223K25 79-879920K21
0‑50 MPH. Contains System Speedometer air temp sensor and system English version engine coolant temperature gauge 100‑250 F/40‑120 C dual scale,
speedometer harness. Black face with white numerals. Black face. Fits a standard 2‑1/8 in. (52 mm) dia. hole.
Descriptive text fault displayed for easier problem recognition. (descriptive text is Fits 2001 and newer OptiMax Outboards, 2002 and newer V‑6 EFI, 30‑60 EFI
displayed on all SmartCraft engines Gen I (2007) and newer. Including Mercruiser 4‑Stroke, all SmartCraft compatible MerCruiser and Mercury Racing product when
and Outboard.) these models have the 555 ECM. Application of this gauge will depend on the
Fits 2002 and newer SmartCraft compatible Outboards, SmartCraft compatible individual engine model and its available sensors.
MerCruiser and SmartCraft compatible Mercury Racing product.
SC 100 SYSTEM LINK FUEL LEVEL GAUGE
SC 100 SYSTEM LINK (52MM) PLASTIC LENS
BLACK FACE/CHROME BEZEL GAUGES

SC 100 SYSTEM LINK TRIM GAUGE

79-879910K21
Fuel level gauge with 0, 1/4, 1/2, 3/4, 1 increments, Black face. Fits a standard
2‑1/8 in. (52 mm) dia. hole.
Fits 2001 and newer OptiMax Outboards, 2002 and newer V‑6 EFI, 30‑60 EFI
4‑Stroke, all SmartCraft compatible MerCruiser and Mercury Racing product when
these models have the 555 ECM. Application of this gauge will depend on the
individual engine model and its available sensors.

79-879914K21
Trim gauge, Black face. Fits a standard 2‑1/8 in. (52 mm) dia. hole.
Fits 2001 and newer OptiMax Outboards, 2002 and newer V‑6 EFI, 30‑60 EFI
4‑Stroke, all SmartCraft compatible MerCruiser and Mercury Racing product when
these models have the 555 ECM. Application of this gauge will depend on the
individual engine model and its available sensors.

462 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
