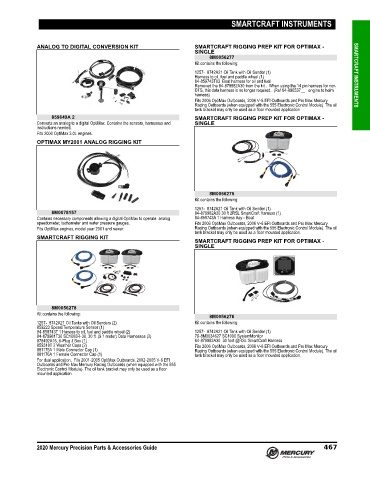

Page 476 - Latin America Accessories Guide (2020) - 8M0163252

SMARTCRAFT INSTRUMENTS

ANALOG TO DIGITAL CONVERSION KIT SMARTCRAFT RIGGING PREP KIT FOR OPTIMAX -
SINGLE
8M0056277
Kit contains the following:
1257‑ 8742A21 Oil Tank with Oil Sender (1)
Harness to oil, fuel and paddle wheel (1) SMARTCRAFT INSTRUMENTS
84‑859743T03 Boat harness for oil and fuel
Removed the 84‑879982A30 from the kit . When using the 14 pin harness for non
DTS, this data harness is no longer required. (Ref 84‑896537__ engine to helm
harness)
Fits 2006 OptiMax Outboards, 2006 V‑6 EFI Outboards and Pro Max Mercury
Racing Outboards (when equipped with the 555 Electronic Control Module). The oil
tank bracket may only be used as a floor mounted application.
859649A 2 SMARTCRAFT RIGGING PREP KIT FOR OPTIMAX -
Converts an analog to a digital OptiMax. Contains the sensors, harnesses and SINGLE
instructions needed.
Fits 2000 OptiMax 3.0L engines.
OPTIMAX MY2001 ANALOG RIGGING KIT

8M0056275
Kit contains the following:
1257‑ 8742A21 Oil Tank with Oil Sender (1)
8M0078157 84‑879982A30 30 ft 2RSL SmartCraft Harness (1)
Contains necessary components allowing a digital OptiMax to operate analog 84‑859743A 1 Harness Asy ‑ Boat
speedometer, tachometer and water pressure gauges. Fits 2006 OptiMax Outboards, 2006 V‑6 EFI Outboards and Pro Max Mercury
Fits OptiMax engines, model year 2001 and newer. Racing Outboards (when equipped with the 555 Electronic Control Module). The oil
tank bracket may only be used as a floor mounted application.
SMARTCRAFT RIGGING KIT
SMARTCRAFT RIGGING PREP KIT FOR OPTIMAX -
SINGLE

8M0056278
Kit contains the following:
8M0056276
1257‑ 8742A21 Oil Tanks with Oil Senders (2) Kit contains the following:
859223 Speed/Temperature Sensor (1)
84‑859743T 1 Haness to oil, fuel and paddle wheel (2) 1257‑ 8742A21 Oil Tank with Oil Sender (1)
84‑879981T30 SC1000R‑30, 30 ft. (9.1 meter) Data Harnesses (2) 79‑8M0034627 SC1000 SystemMonitor
878492A16, 6‑Plug J Box (1) 84‑879982A30 30 foot @RSL SmartCraft Harness
859318T 2 Weather Caps (2) Fits 2006 OptiMax Outboards, 2006 V‑6 EFI Outboards and Pro Max Mercury
881175A 1 Male Connector Cap (1) Racing Outboards (when equipped with the 555 Electronic Control Module). The oil
881176A 1 Female Connector Cap (1) tank bracket may only be used as a floor mounted application.
For dual application. Fits 2001‑2005 OptiMax Outboards, 2002‑2005 V‑6 EFI
Outboards and Pro Max Mercury Racing Outboards (when equipped with the 555
Electronic Control Module). The oil tank bracket may only be used as a floor
mounted application.
