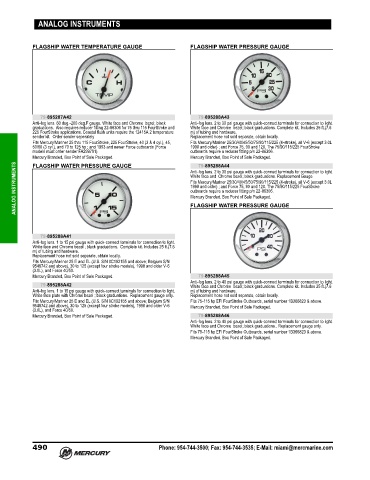

Page 499 - Latin America Accessories Guide (2020) - 8M0163252

ANALOG INSTRUMENTS

FLAGSHIP WATER TEMPERATURE GAUGE FLAGSHIP WATER PRESSURE GAUGE

79-895287A42 79-895288A43
Anti‑fog lens. 60 deg.‑200 deg.F gauge. White face and Chrome bezel; black Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
graduations. Also requires reducer fitting 22‑86306 for 75 thru 115 FourStroke and White face and Chrome bezel; black graduations. Complete kit. Includes 25 ft.(7.6
225 FourStroke applications. Coastal flush units require the 12415A 2 temperature m) of tubing and hardware.
sender kit. Order sender seperately Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45, Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force 1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
models must order sender FA299791) outboards require a reducer fitting p/n 22‑86306.
Mercury Branded, Box Point of Sale Packaged. Mercury Branded, Box Point of Sale Packaged.
ANALOG INSTRUMENTS White face and Chrome bezel; black graduations. Replacement Gauge
79-895288A44
FLAGSHIP WATER PRESSURE GAUGE
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP WATER PRESSURE GAUGE

79-895288A41
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
White face and Chrome bezel ; black graduations. Complete kit. Includes 25 ft.(7.6
m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Mercury Branded, Box Point of Sale Packaged. 79-895288A45
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
79-895288A42 White face and Chrome bezel; black graduations. Complete kit. Includes 25 ft.(7.6
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light. m) of tubing and hardware.
White face plate with Chrome bezel ; black graduations. Replacement gauge only. Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6 Mercury Branded, Box Point of Sale Packaged.
(3.0L), and Force 40/50.
Mercury Branded, Box Point of Sale Packaged. 79-895288A46
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
White face and Chrome bezel; black graduations.. Replacement gauge only.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Mercury Branded, Box Point of Sale Packaged.

490 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
