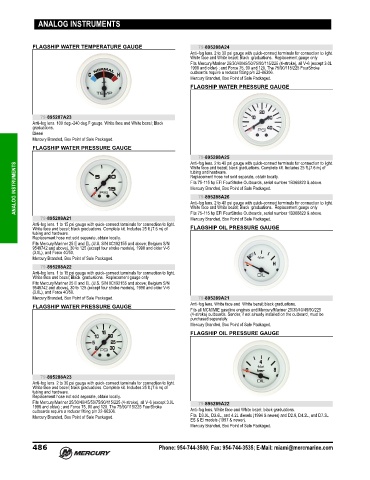

Page 495 - Latin America Accessories Guide (2020) - 8M0163252

ANALOG INSTRUMENTS

FLAGSHIP WATER TEMPERATURE GAUGE 79-895288A24
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
White face and White bezel; Black graduations. Replacement gauge only
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP WATER PRESSURE GAUGE

79-895287A23
Anti‑fog lens. 100 deg.‑240 deg.F gauge. White face and White bezel; Black
graduations.
Diesel
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP WATER PRESSURE GAUGE
79-895288A25
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
ANALOG INSTRUMENTS Replacement hose not sold separate, obtain locally.
White face and bezel; black graduations. Complete kit. Includes 25 ft.(7.6 m) of
tubing and hardware.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Mercury Branded, Box Point of Sale Packaged.
79-895288A26
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
79-895288A21 White face and White bezel; Black graduations. Replacement gauge only
Mercury Branded, Box Point of Sale Packaged.
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
White face and bezel; black graduations. Complete kit. Includes 25 ft.(7.6 m) of FLAGSHIP OIL PRESSURE GAUGE
tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Mercury Branded, Box Point of Sale Packaged.
79-895288A22
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
White face and bezel; Black graduations. Replacement gauge only
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Mercury Branded, Box Point of Sale Packaged. 79-895289A21
Anti‑fog lens. White face and White bezel; black graduations.
FLAGSHIP WATER PRESSURE GAUGE
Fits all MCM/MIE gasoline engines and Mercury/Mariner 25/30/40/45/50/225
(4‑stroke) outboards. Sender, if not already installed on the outboard, must be
purchased separately.
Mercury Branded, Box Point of Sale Packaged.
FLAGSHIP OIL PRESSURE GAUGE

79-895288A23
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
White face and bezel; black graduations. Complete kit. Includes 25 ft.(7.6 m) of
tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L 79-895289A22
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306. Anti‑fog lens. White face and White bezel; black graduations.
Mercury Branded, Box Point of Sale Packaged. Fits D3.0L, D3.6L, and 4.2L diesels (1994 & newer) and D2.8, D4.2L, and D7.3L
ES & EI models (1997 & newer).
Mercury Branded, Box Point of Sale Packaged.

486 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
