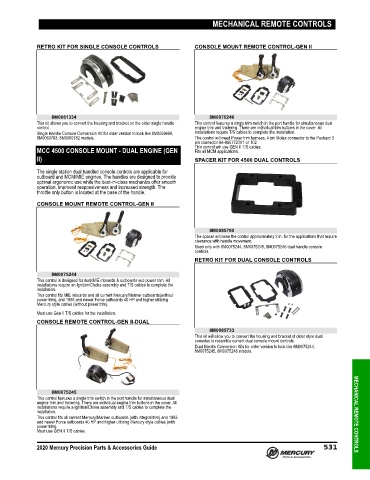

Page 540 - Latin America Accessories Guide (2020) - 8M0163252

MECHANICAL REMOTE CONTROLS

RETRO KIT FOR SINGLE CONSOLE CONTROLS CONSOLE MOUNT REMOTE CONTROL-GEN II

8M0061334 8M0075246
This kit allows you to convert the housing and bracket on the older single handle This control features a single trim switch in the port handle for simultaneous dual
control. engine trim and trailering. There are individual trim buttons in the cover. All
Single Handle Console Conversion Kit for older version to look like 8M0059686, installations require T/S cables to complete the installation.
8M0060783, 8M0060782 models. The control will need Power trim harness, 4 pin Molex connector to the Packard 3
pin connector 84‑865772T01 or T02
MCC 4500 CONSOLE MOUNT - DUAL ENGINE (GEN This control will use GEN II T/S cables.
Fits all MCM applications.
II) SPACER KIT FOR 4500 DUAL CONTROLS

The single station dual handled console controls are applicable for
outboard and MCM/MIE engines. The handles are designed to provide
optimal ergonomic use while the best‑in‑class mechanics offer smooth
operation, improved responsiveness and increased strength. The
throttle only button is located at the base of the handle.

CONSOLE MOUNT REMOTE CONTROL-GEN II

8M0085790
The spacer will raise the control approximately 2 in. for the applications that require
clearance with handle movement.
Used only with 8M0075244, 8M0075245, 8M0075246 dual handle console
controls.
RETRO KIT FOR DUAL CONSOLE CONTROLS

8M0075244
This control is designed for dual MIE inboards & outboards w/o power trim. All
installations require an Ignition/Choke assembly and T/S cables to complete the
installation.
This control fits MIE inboards and all current Mercury/Mariner outboards(without
power trim), and 1993 and newer Force outboards 40 HP and higher utilizing
Mercury style cables (without power trim).
Must use Gen II T/S cables for the installation.
CONSOLE REMOTE CONTROL-GEN II-DUAL
8M0085733
This kit will allow you to convert the housing and bracket of older style dual
consoles to resemble current dual console mount controls.
Dual Handle Conversion Kits for older version to look like 8M0075244,
8M0075245, 8M0075246 models.

8M0075245
This control features a single trim switch in the port handle for simultaneous dual
engine trim and trailering. There are individual engine trim buttons in the cover. All
installations require a Ignition/Choke assembly and T/S cables to complete the
installation. MECHANICAL REMOTE CONTROLS
This control fits all current Mercury/Mariner outboards (with integral trim) and 1993
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with
power trim).
Must use GEN II T/S cables.

2020 Mercury Precision Parts & Accessories Guide 531
