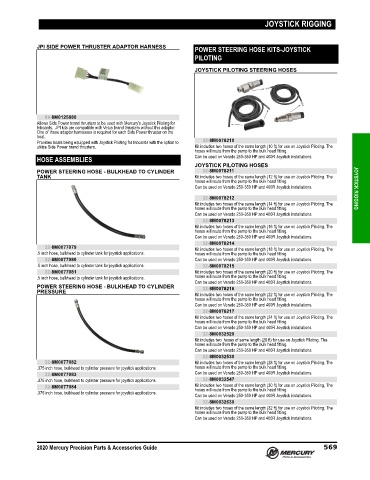

Page 578 - Latin America Accessories Guide (2020) - 8M0163252

JOYSTICK RIGGING

JPI SIDE POWER THRUSTER ADAPTOR HARNESS
POWER STEERING HOSE KITS-JOYSTICK
PILOTING

JOYSTICK PILOTING STEERING HOSES

84-8M0125880
Allows Side Power brand thrusters to be used with Mercury's Joystick Piloting for
Inboards. JPI kits are compatible with Vetus brand thrusters without this adaptor.
One of these adaptor harnesses is required for each Side Power thruster on the
boat.
Provides boats being equipped with Joystick Piloting for Inboards with the option to 32-8M0078210
utilize Side Power brand thrusters. Kit includes two hoses of the same length (10 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
HOSE ASSEMBLIES Can be used on Verado 250‑350 HP and 400R Joystick installations.
JOYSTICK PILOTING HOSES
POWER STEERING HOSE - BULKHEAD TO CYLINDER 32-8M0078211
TANK Kit includes two hoses of the same length (12 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations. JOYSTICK RIGGING
32-8M0078212
Kit includes two hoses of the same length (14 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078213
Kit includes two hoses of the same length (16 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078214
32-8M0077079 Kit includes two hoses of the same length (18 ft) for use on Joystick Piloting. The
.5 inch hose, bulkhead to cylinder tank for joystick applications. hoses will route from the pump to the bulk head fitting.
32-8M0077080 Can be used on Verado 250‑350 HP and 400R Joystick installations.
.5 inch hose, bulkhead to cylinder tank for joystick applications. 32-8M0078215
32-8M0077081 Kit includes two hoses of the same length (20 ft) for use on Joystick Piloting. The
.5 inch hose, bulkhead to cylinder tank for joystick applications. hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
POWER STEERING HOSE - BULKHEAD TO CYLINDER 32-8M0078216
PRESSURE
Kit includes two hoses of the same length (22 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078217
Kit includes two hoses of the same length (24 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032520
Kit includes two hoses of same length (26 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032530
32-8M0077082 Kit includes two hoses of the same length (28 ft) for use on Joystick Piloting. The
.375 inch hose, bulkhead to cylinder pressure for joystick applications. hoses will route from the pump to the bulk head fitting.
32-8M0077083 Can be used on Verado 250‑350 HP and 400R Joystick installations.
.375 inch hose, bulkhead to cylinder pressure for joystick applications. 32-8M0032547
32-8M0077084 Kit includes two hoses of the same length (30 ft) for use on Joystick Piloting. The
.375 inch hose, bulkhead to cylinder pressure for joystick applications. hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032630
Kit includes two hoses of the same length (32 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
