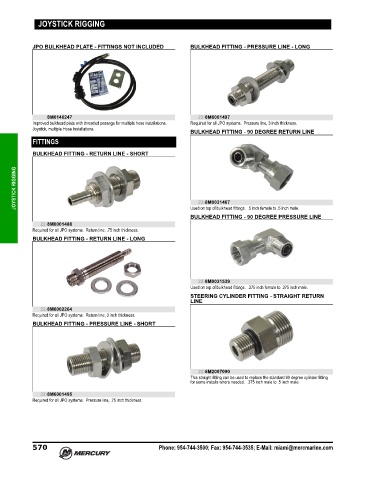

JOYSTICK RIGGING

JPO BULKHEAD PLATE - FITTINGS NOT INCLUDED BULKHEAD FITTING - PRESSURE LINE - LONG

8M0146247 22-8M6001497
Improved bulkhead plate with threaded passage for multiple hose installations. Required for all JPO systems. Pressure line, 3 inch thickness.
Joystick, multiple Hose Installations.
BULKHEAD FITTING - 90 DEGREE RETURN LINE
FITTINGS

BULKHEAD FITTING - RETURN LINE - SHORT

JOYSTICK RIGGING 22-8M0031467

Used on top of bulkhead fittings. .5 inch female to .5 inch male.
BULKHEAD FITTING - 90 DEGREE PRESSURE LINE
22-8M6001488
Required for all JPO systems. Return line, .75 inch thickness.
BULKHEAD FITTING - RETURN LINE - LONG

22-8M0031539
Used on top of bulkhead fittings. .375 inch female to .375 inch male.
STEERING CYLINDER FITTING - STRAIGHT RETURN
LINE
22-8M6002264
Required for all JPO systems. Return line, 3 inch thickness.
BULKHEAD FITTING - PRESSURE LINE - SHORT

22-8M2007090
This straight fitting can be used to replace the standard 90 degree cylinder fitting
for some installs where needed. .375 inch male to .5 inch male.

22-8M6001495
Required for all JPO systems. Pressure line, .75 inch thickness.
