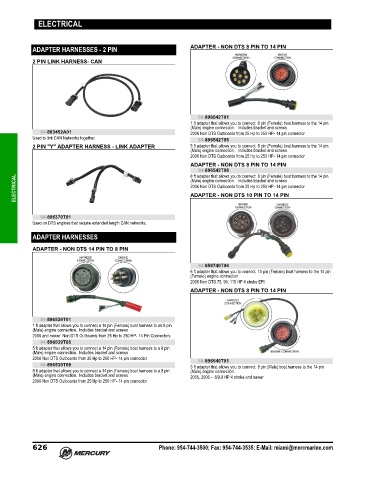

Page 635 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

ADAPTER HARNESSES - 2 PIN ADAPTER - NON DTS 8 PIN TO 14 PIN

2 PIN LINK HARNESS- CAN

84-896542T01
1 ft adapter that allows you to connect 8 pin (Female) boat harness to the 14 pin
(Male) engine connection. Includes bracket and screws
84-893452A01 2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
Used to link CAN Networks together. 84-896542T05
2 PIN "Y" ADAPTER HARNESS - LINK ADAPTER 5 ft adapter that allows you to connect 8 pin (Female) boat harness to the 14 pin
(Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
ADAPTER - NON DTS 8 PIN TO 14 PIN
84-896542T08
8 ft adapter that allows you to connect 8 pin (Female) boat harness to the 14 pin
ELECTRICAL (Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
ADAPTER - NON DTS 10 PIN TO 14 PIN

84-896370T01
Used on DTS engines that require extended length CAN networks.

ADAPTER HARNESSES

ADAPTER - NON DTS 14 PIN TO 8 PIN

84-858740T06
6 ft adapter that allows you to connect 10 pin (Female) boat harness to the 14 pin
(Female) engine connection.
2006 Non DTS 75, 90, 115 HP 4 stroke EFI
ADAPTER - NON DTS 8 PIN TO 14 PIN

84-896539T01
1 ft adapter that allows you to connect a 14 pin (Female) boat harness to an 8 pin
(Male) engine connection. Includes bracket and screws
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
84-896539T05
5 ft adapter that allows you to connect a 14 pin (Female) boat harness to a 8 pin
(Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector 84-896540T01
84-896539T08 3 ft adapter that allows you to connect 8 pin (Male) boat harness to the 14 pin
8 ft adapter that allows you to connect a 14 pin (Female) boat harness to a 8 pin (Male) engine connection.
(Male) engine connection. Includes bracket and screws 2005, 2006 ‑ 8/9.9 HP 4 stroke and newer
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
