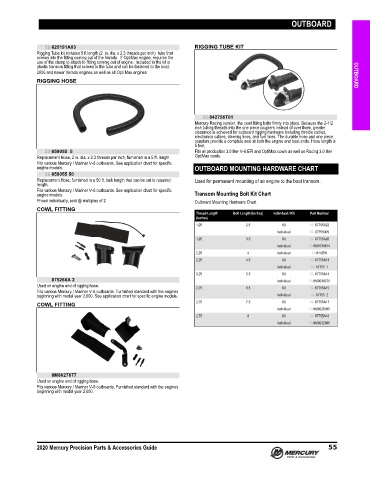

Page 64 - Latin America Accessories Guide (2020) - 8M0163252

OUTBOARD

32-825191A03 RIGGING TUBE KIT
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube that
screws into the fitting coming out of the Verado. If OptiMax engine, requires the
use of the clamp to attach to fitting coming out of engine. Included in the kit is
plastic transom fitting that screws to the tube and can be fastened to the boat.
2005 and newer Verado engines as well as all Opti Max engines OUTBOARD
RIGGING HOSE

32-842756T01
Mercury Racing version, the cowl fitting bolts firmly into place. Because the 2‑1/2
inch tubing threads into the one piece couplers instead of over them, greater
clearance is achieved for outboard rigging hardware including throttle cables,
electronics cables, steering lines, and fuel lines. The durable hose and one piece
couplers provide a complete seal at both the engine and boat ends. Hose length is
5 feet.
32-859055 5 Fits all production 3.0 liter V‑6 EFI and OptiMax cowls as well as Racing 3.0 liter
Replacement Hose, 2 in. dia. x 2.3 threads per inch, furnished in a 5 ft. length. OptiMax cowls.
Fits various Mercury / Mariner V‑6 outboards. See application chart for specific
engine models. OUTBOARD MOUNTING HARDWARE CHART
32-859055 50
Replacement Hose, furnished in a 50 ft. bulk length that can be cut to required Used for permanent mounting of an engine to the boat transom.
length.
Fits various Mercury / Mariner V‑6 outboards. See application chart for specific
engine models. Transom Mounting Bolt Kit Chart
Priced individually, sold @ multiples of 2 Outboard Mounting Hardware Chart
COWL FITTING
Thread Length Bolt Length (Inches) Individual / Kit Part Number
(Inches)
1.25 2.5 Kit 10- 67755A22
Individual 10- 67755005
1.25 3.5 Kit 10- 67755A26
Individual 10-8M0131814
2.25 4 Individual 10-814259
2.25 4.5 Kit 10- 67755A13
Individual 10- 67755 1
3.25 5.5 Kit 10- 67755A14
875266A 2 Individual 10-8M0038370
Used on engine end of rigging hose. 2.75 6.5 Kit 10- 67755A15
Fits various Mercury / Mariner V‑6 outboards. Furnished standard with the engines
beginning with model year 2,000. See application chart for specific engine models. Individual 10- 67755 2
2.75 7.5 Kit 10- 67755A17
COWL FITTING
Individual 10-8M0028080
2.75 8 Kit 10- 67755A18
Individual 10-8M0032860

8M8027677
Used on engine end of rigging hose.
Fits various Mercury / Mariner V‑6 outboards. Furnished standard with the engines
beginning with model year 2,000.

2020 Mercury Precision Parts & Accessories Guide 55
