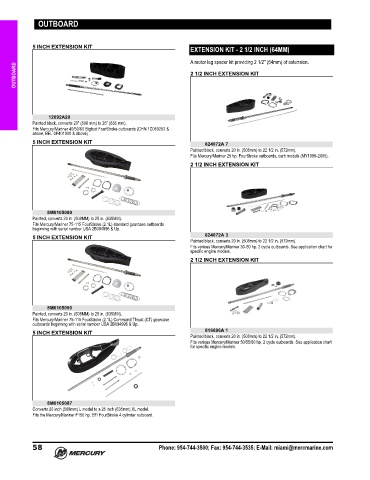

Page 67 - Latin America Accessories Guide (2020) - 8M0163252

OUTBOARD

5 INCH EXTENSION KIT
EXTENSION KIT - 2 1/2 INCH (64MM)
A motor leg spacer kit providing 2 1/2" (64mm) of extension.
OUTBOARD 2 1/2 INCH EXTENSION KIT

12092A20
Painted black, converts 20" (508 mm) to 25" (635 mm).
Fits Mercury/Mariner 40/50/60 Bigfoot FourStroke outboards (CHN 1C050252 &
above, BEL 0P401000 & above)
5 INCH EXTENSION KIT 824072A 7
Painted black, converts 20 in. (508mm) to 22 1/2 in. (572mm).
Fits Mercury/Mariner 25 hp. FourStroke outboards, carb models (MY1998‑2005).
2 1/2 INCH EXTENSION KIT

8M0105089
Painted, converts 20 in. (508MM) to 25 in. (635MM).
Fits Mercury/Mariner 75‑115 FourStroke (2.1L) standard gearcase outboards
beginning with serial number USA 2B094996 & Up.
824072A 3
5 INCH EXTENSION KIT
Painted black, converts 20 in. (508mm) to 22 1/2 in. (572mm).
Fits various Mercury/Mariner 30‑50 hp. 2 cycle outboards. See application chart for
specific engine models.
2 1/2 INCH EXTENSION KIT

8M0105090
Painted, converts 20 in. (508MM) to 25 in. (635MM).
Fits Mercury/Mariner 75‑115 FourStroke (2.1L) Command Thrust (CT) gearcase
outboards beginning with serial number USA 2B094996 & Up.
5 INCH EXTENSION KIT 816696A 1
Painted black, converts 20 in. (508mm) to 22 1/2 in. (572mm).
Fits various Mercury/Mariner 50/55/60 hp. 2 cycle outboards. See application chart
for specific engine models.

8M0105087
Converts 20 inch (508mm) L model to a 25 inch (635mm) XL model.
Fits the Mercury/Mariner F150 hp. EFI FourStroke 4 cylinder outboard.

58 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
