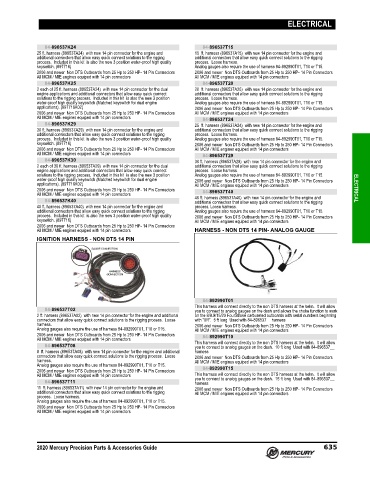

Page 644 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

84-896537K24 84-896537T15
25 ft. harness (896537A24) with new 14 pin connector for the engine and 15 ft. harness (896537A15) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging additional connectors that allow easy quick connect solutions to the rigging
process. Included in this kit is also the new 3 position water‑proof high quality process. Loose harness.
keyswitch. (897716) Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors All MCM / MIE engines equiped with 14 pin connectors
84-896537K25 84-896537T20
2 each of 25 ft. harness (896537A24) with new 14 pin connector for the dual 20 ft. harness (896537A20) with new 14 pin connector for the engine and
engine applications and additional connectors that allow easy quick connect additional connectors that allow easy quick connect solutions to the rigging
solutions to the rigging process. Included in this kit is also the new 3 position process. Loose harness.
water‑proof high quality keyswitch (Matched keyswitch for dual engine Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
applications). (897716K02) 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors All MCM / MIE engines equiped with 14 pin connectors
All MCM / MIE engines equiped with 14 pin connectors 84-896537T24
84-896537K29 25 ft. harness (896537A24) with new 14 pin connector for the engine and
30 ft. harness (896537A29) with new 14 pin connector for the engine and additional connectors that allow easy quick connect solutions to the rigging
additional connectors that allow easy quick connect solutions to the rigging process. Loose harness.
process. Included in this kit is also the new 3 position water‑proof high quality Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
keyswitch. (897716) 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors All MCM / MIE engines equiped with 14 pin connectors
All MCM / MIE engines equiped with 14 pin connectors 84-896537T29
84-896537K30 30 ft. harness (896537A29) with new 14 pin connector for the engine and
2 each of 30 ft. harness (896537A29) with new 14 pin connector for the dual additional connectors that allow easy quick connect solutions to the rigging
engine applications and additional connectors that allow easy quick connect process. Loose harness.
solutions to the rigging process. Included in this kit is also the new 3 position Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
water‑proof high quality keyswitch (Matched keyswitch for dual engine 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
applications). (897716K02) All MCM / MIE engines equiped with 14 pin connectors
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 84-896537T40 ELECTRICAL
All MCM / MIE engines equiped with 14 pin connectors
84-896537K40 40 ft. harness (896537A40) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging
40 ft. harness (896537A40) with new 14 pin connector for the engine and process. Loose harness.
additional connectors that allow easy quick connect solutions to the rigging Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
process. Included in this kit is also the new 3 position water‑proof high quality 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
keyswitch. (897716) All MCM / MIE engines equiped with 14 pin connectors
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors HARNESS - NON DTS 14 PIN- ANALOG GAUGE
IGNITION HARNESS - NON DTS 14 PIN

84-892990T01
This harness will connect directly to the non DTS harness at the helm. It will allow
84-896537T02 you to connect to analog gauges on the dash and allows the choke function to work
2 ft. harness (896537A02) with new 14 pin connector for the engine and additional on the 8/9.9/15/20 FourStroke carbureted outboards with serial numbers beginning
connectors that allow easy quick connect solutions to the rigging process. Loose with "0R". 5 ft long Used with 84‑896537__ harness
harness. 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
Analog gauges also require the use of harness 84‑892990T01, T10 or T15. All MCM / MIE engines equiped with 14 pin connectors
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 84-892990T10
All MCM / MIE engines equiped with 14 pin connectors
84-896537T08 This harness will connect directly to the non DTS harness at the helm. It will allow
you to connect to analog gauges on the dash. 10 ft long Used with 84‑896537__
8 ft. harness (896537A08) with new 14 pin connector for the engine and additional harness
connectors that allow easy quick connect solutions to the rigging process. Loose 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
harness. All MCM / MIE engines equiped with 14 pin connectors
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 84-892990T15
All MCM / MIE engines equiped with 14 pin connectors This harness will connect directly to the non DTS harness at the helm. It will allow
you to connect to analog gauges on the dash. 15 ft long Used with 84‑896537__
84-896537T11 harness
11 ft. harness (896537A11) with new 14 pin connector for the engine and 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
additional connectors that allow easy quick connect solutions to the rigging All MCM / MIE engines equiped with 14 pin connectors
process. Loose harness.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors

2020 Mercury Precision Parts & Accessories Guide 635
